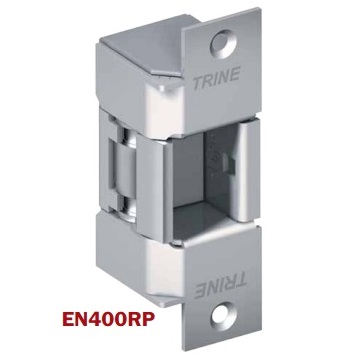

EN400RP Outdoor Rim Panic Electric Strike
Overview
The ONLY Access Control Solution for Outdoor Rim Exit Devices.
For new or replacement installations in wood or metal jambs. Use with rim panic devices, especially in gates, with up to 1” throw, based on 1/8” door (gate) gap.
Features:
• Superior Strength - 2,000+ lbs UL tested
• Superior Life - durability of 1,000,000+ life cycles
• Outdoor UL rating allows for use anywhere
• Especially good for gates
• Grade 1 Strike - One piece locking mechanism
• Left and Right handing is field reversible
Perfect for exterior doors and gates. Use the EN400RP with Item # K-BXES-EN400 and securely mount the strike anywhere on the frame.
Product Details
Product Overview
For new or replacement installations in wood or metal jambs. Use with rim panic devices, especially in gates, with up to 1 inch throw, based on 1/8 inch door (gate) gap.
Product Features
- Superior Strength - 2,000+ lbs UL tested
- Superior Life - durability of 1,000,000+ life cycles
- Outdoor UL rating allows for use anywhere, especially good for gates
- Grade 1 Strike - One piece locking mechanism
- Left and Right handing is field reversible
Models
- EN400RP-12AC-LH-US32D
- EN400RP-12AC-RH-US32D
- EN400RP-12DC-LH-10B
- EN400RP-12DC-LH-US32D
- EN400RP-12DC-RH-US32D
- EN400RP-24AC-LH-US10B
- EN400RP-24AC-LH-US32D
- EN400RP-24AC-RH-US32D
- EN400RP-24DC-LH-US10B
- EN400RP-24DC-LH-US32D
- EN400RP-24DC-LH-US4
- EN400RP-24DC-RH-US10B
- EN400RP-24DC-RH-US32D
Specifications
- .28amp @ 12VDC
- .15amp @ 24VDC
- .70 current @ 12VAC
- .37 current @ 24VAC
Dimensions
- 4-7/8 inches L x 1-1/4 inches W x 3/32 inches D faceplate
- 1-11/16 inches strike body depth
