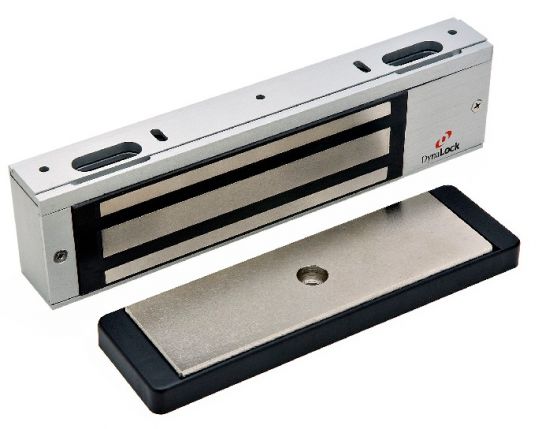

DynaLock, 3000 series Electromagnetic Lock, 1500lbs

Product Overview

The 3000 Series is a full size 1500 lbs. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. Specify for commercial, industrial, or institutional openings where maximum security and durability is required.

Standard Features

• 1500lbs of Holding Force
• Armature Plate and install hardware included
• Silent Operation
• Long Lasting Performance
• 12/24 VAC/VDC operation
• Narrow backset of 1-1/2"
• Built-in spike suppression
• Adjustable Relock Time Delay standard
• Made in the USA
• Lifetime Warranty

Technical Specifications

• Magnet Size: 11 inch L x 2-3/4 inch H x 1-1/2 inch D
• Armature Size: 7-3/8 inch L x 2-3/8 inch H x 1/2 inch D
• Current Draw: 420mA @ 12VDC, 210mA @ 24VDC
• Weight: 10lbs

Models

• 3000, 3000-US28 Single Electromagnetic Lock Outswing
• 3000TJ30, 3000TJ30-US28 Single Electromagnetic Lock Inswing

Finishes

• US28 Satin Aluminum with clear anodize

Specifications

• Models: 3000 / 3000-US28 (outswing); 3000TJ30 / 3000TJ30-US28 (inswing)
• Holding Force: 1,500 lbs
• Voltage: 12/24 VAC/VDC
• Current Draw: 420 mA at 12 VDC; 210 mA at 24 VDC
• Magnet Size: 11 in L x 2-3/4 in H x 1-1/2 in D
• Armature Size: 7-3/8 in L x 2-3/8 in H x 1/2 in D
• Backset: Narrow, 1-1/2 inches
• Weight: 10 lbs
• Relock: Adjustable relock time delay, standard
• Finish: US28 satin aluminum, clear anodize
• Protection: Built-in spike suppression
• Status Monitor: Optional
• Origin: Made in the USA
• Warranty: Lifetime
