Complete Single Door Electric Strike Kit

$317.52 $352.80

Overview

Complete single door access control system with SDC 25-4U Electric Strike for door with Cylindrical Locks.

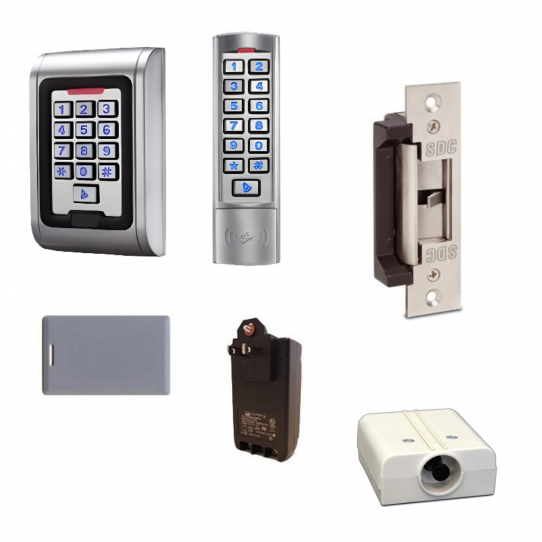

Kit Includes:

  • 1 each CC-3800EM Weather Proof, Indoor/Outdoor, Digital keypad + proximity reader
  • 5 each PCS-1 proximity cards
  • 1 each 25-4U electric strike
  • 1 each HUB Remote Release Button
  • 1 each PS12-2 2amp Plug in Power Supply (Upgradeable to MC-1 1.2amp linear with battery backup)

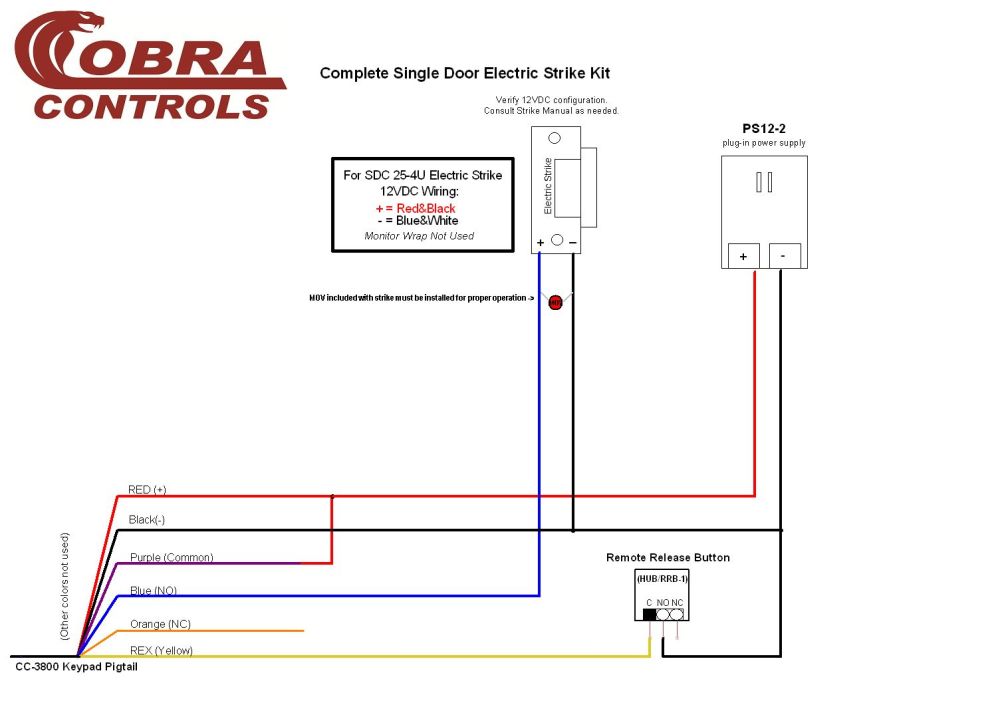

  • 1 each Complete wiring diagram and 100% free over the phone tech support!!

For assistance with this kit please use the Live Chat feature or Call us Toll Free at 1-866-500-5625

Locksets should have the Storeroom Function* to ensure proper operation of this system.

*Storeroom Function - Dead locking latch bolt operated by key in outside lever, or by operating inside lever.

More Info +


Select Keypad and Proximity Reader Style:
Wire (select a length):
Options

Qty

Product Details

Product Overview

Acess control system inlcudes the SDC 25-4U Electric Strike, PIN/Prox reader for entry, and Power Supply. The remote release button can be wired to allow door release from almost anywhere in the building. Great for door that have a cylindrical lockset or knob installed which are common in small businesses and school type settings.

Features

  • PIN, Prox card or PIN + Prox card entry
  • 2000 user capacity
  • All programming is done through the keypad
  • 1 form C relay
  • Electronics are epoxy sealed, IP68 rated (will accept PIN codes and Prox cards while completely submerged in up to 1 meter of water)
  • Metal vandel resistant construction, includes security screws and built in anti-tamper alarm
  • 5 PCS-1 Prox cards included with keypad purchase

Specifications

  • Work Voltage:AC and DC9-28V
  • Static Current: <=30mA
  • Reading Range:3-8cm
  • Capacity: 2000 users
  • Ambient Temperature:-25-60
  • Ambient Humidity:10%-90%
  • Electricity lock output: <=3A
  • Alarm output: <=20A
  • Output short circuit protection time: <=100uS
  • Open time:0 - 99 seconds (adjustable)
  • Size: 4-3/4 inch L x 3-1/8 inch W x 1 inch D (120L * 80W * 25Dmm)

Single Door electric Strike Kit Includes

  • 1 each CC-3800EM Weather Proof, Indoor/Outdoor, Digital keypad + proximity reader
  • 5 each PCS-1 proximity cards
  • 1 each 25-4U electric strike
  • 1 each HUB2SA Remote Release Button
  • 1 each PS12-2 2amp Plug in Power Supply (Upgradeable to MC-1 1.2amp linear with battery backup)
  • 1 each Complete wiring diagram and 100% free over the phone tech support!!
Also Known As
Complete Single Door sprike Kit, CC-3800 Strike Kit
For Use With
Cylindrical Locksets, Hollow Metal Door Jambs
Manufacturer
Maglocks.com
Manufacturer Warranty
2 Year
Model Number
Complete Single Door Electric Strike Kit
Power Requirements
12VDC
1 Question asked on Complete Single Door Electric Strike Kit



Q Nick Johnston • 07/25/2021, 0:11:47 AM do any of these keypad electronic striker sets have audit trail capabilities?
A 08/03/2021, 1:08:20 PM This kit does not offer an audit trail or log of entry. For this feature we would recommend one of our Computerized Access Control systems. To learn more about the Computerized systems or to get started on a system quote, please give us a call at 1-866-500-5625
