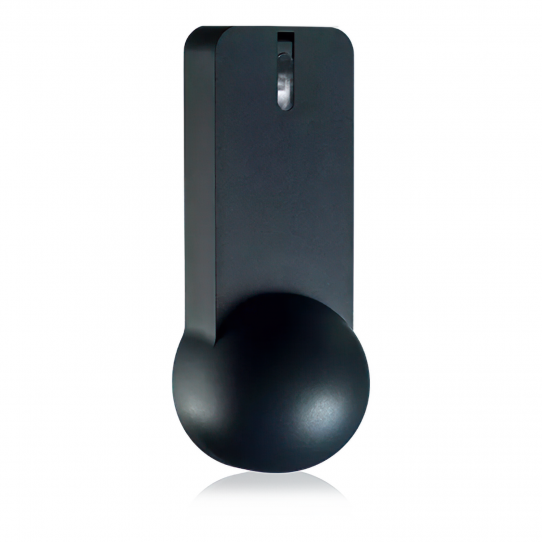

BEA, 10SPARROW Variable Mount Industrial Motion Sensor, IP64

Description

BEA SPARROW is a highly flexible motion sensor designed to detect people and vehicles in a variety of industrial, security and pedestrian applications.

The SPARROW adjustable microwave antenna can be rotated ±120 degrees to create different sensing fields, capable of detecting bi-directional traffic (two way), unidirectional (approach only) and unidirectional away (departure only).

The SPARROW is designed to operate in industrial or harsh environments. It is ideal for motion detection applications including vehicle sensing, access control and warning indication.

Models

• 10SPARROW: Variable Mount Industrial Motion Sensor, IP64

Specifications

• Model: 10SPARROW Variable Mount Industrial Motion Sensor
• Manufacturer: BEA
• Sensor Technology: Microwave Doppler radar, 24.150 GHz
• Detection Mode: Motion; bidirectional, approach only or departure only (antenna rotates +/-120 degrees)
• Voltage: 12 V to 24 V AC/DC
• Relay: SPDT (COM, NO, NC); 30 W (DC) / 60 VA (AC), 1 A (resistive) maximum
• Mounting Height: 6-1/2 feet to 20 feet
• Dimensions: 5-1/2 inches L x 2-1/4 inches H x 2-1/5 inches W
• Weight: 5.8 oz
• Cable Length: 30 feet
• Operating Temperature: -22° F to +140° F
• Protection: IP64
• Mount: Surface mount
• Finish: Black
• Transmitter Frequency: 24.150 GHz
• Transmitter power density: < 5 mW/cm
• Dimensions: 5-1/2 inch (L) x 2-1/4 inch (H) x 2-1/5 inch (W) inches
