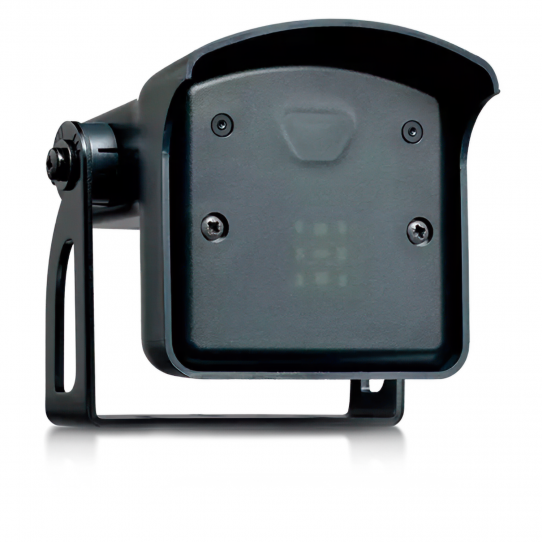

BEA, 10FALCON Motion Sensors for Industrial Doors & Gates

$422.10 $469.00

Overview

BEA’s FALCON FAMILY is ideal for automatic industrial doors, vehicle gates / barriers, vehicle detection, loading docks or any other industrial application where motion detection is required.

Housed in a NEMA 4 rated enclosure, the FALCON FAMILY is designed to operate in harsh environments.

More Info +


Select Model (see below for mounting & detection specifications):
Options

Qty

Product Details

Description

BEA’s FALCON FAMILY of sensors is the premier microwave activation solution for indoor and outdoor industrial applications. The family includes the FALCON, FALCON XL (extra low mount) and FALCON WIDE (for wide detection areas).

BEA’s FALCON FAMILY is ideal for automatic industrial doors, vehicle gates / barriers, vehicle detection, loading docks or any other industrial application where motion detection is required.

Housed in a NEMA 4 rated enclosure, the FALCON FAMILY is designed to operate in harsh environments.

Technical Specifications

  • Sensor Technology: Microwave Doppler Radar
  • Radiated frequency: 24.150 GHz
  • Transmitter radiated power: <20 dBm EIRP
  • Transmitter power density: < 5 mW/cm²
  • Cable Length: 33ft
  • Relay: SPDT (42V AC/DC Max, 1A (resistive) Max)
  • Tilt adjustment angle: 0 - 180º vertical
  • Temperature range: -22º F to +140º F
  • Degree of protection: IP65

Models

Mounting Heights:

  • 10FALCON: Standard Mounting heights, mounting range (11-1/2 feet to 23 feet)
  • 10FALCONXL: Low Mounting heights, mounting range (6-1/2 feet to 11-1/2 feet)
  • 10FALCONW: Wide Detection fields, mounting range (11-1/2 feet to 21 feet)

Detection Zone:

  • 10FALCON: 13 feet x 16 feet (when mounted at 16 feet)
  • 10FALCONXL: 13 feet x 6-1/2 feet (when mounted at 8-1/2 feet)
  • 10FALCONW: 30 feet x 11 feet (when mounted at 21 feet)
Also Known As
BEA-10FALCON
Finish
Black
For Use With
Industrial Doors and Gates
Manufacturer
BEA
Model Number
10FALCON, 10FALCONXL, 10FALCONW
Power Requirements
24V/12V AC/DC
Switch Type
SPDT
UPC Code
4893993193059
Usage
Weather Resistant
