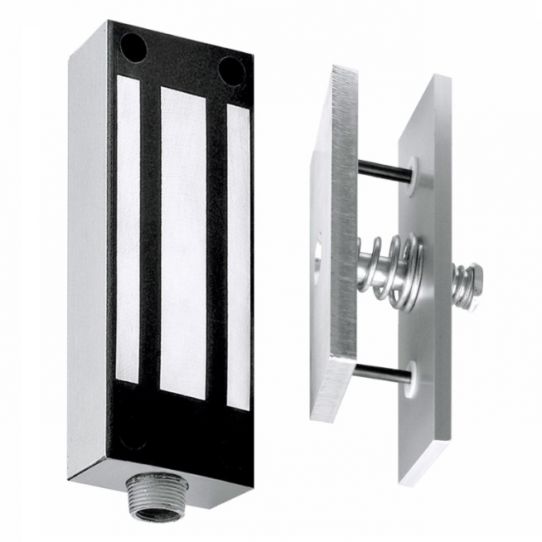

Securitron, M62FG-SASM Shock Absorbing Maglock for Outdoor Gates
$657.72
$792.43
Overview
The shock absorbing 1,200 lbs. Magnetic lock solution for outdoor gates.
This weatherproof unit delivers 1,200 lbs of holding force and comes equipped with conduit fittings and a special shock absorbing strike mount (SASM).
This unique design dramatically prolongs the life of the lock, the gate and other hardware by controlling excessive impact between the strike plate and the magnet.
Product Details
Securitron, M62FG-SASM Shock Absorbing Maglock for Outdoor Gates, 1200lbs holding force
The Securitron M62FG-SASM is the only heavy duty Magnalock specifically designed to secure and protect gates. The unit, which delivers 1200 lbs of holding force, is equipped with conduit fittings and a special shock absorbing strike mount (SASM).
The M62FG-SASM's design dramatically prolongs the life of the lock, the gate, and other hardware by controlling excessive impact between the strike plate and the magnet.
Product Overview
- This weatherproof unit delivers 1,200 lbs of holding force and comes equipped with conduit fittings and a special shock absorbing strike mount (SASM).
- This unique design dramatically prolongs the life of the lock, the gate and other hardware by controlling excessive impact between the strike plate and the magnet.
Product Features
- 1,200lbs holding force with SASM (Shock Absorbing Strike Mount)
- SASM main spring provides 5/8 inch impact compression and 110 lbs. resistance
- SASM anti-kickback spring provides 3/8 inch of rebound travel to return the gate to the normal "home" position
- Patented instant release circuit - no residual magnetism
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- Universal threaded conduit fitting is 1/2 inch female - 3/4 inch male
* Brackets for swinging and sliding gates available (sold separately)
Certifications
- UL 10C Listed
- CAN4-S104, CAN/ ULC-S533 Listed
- ANSI/BHMA A156.23, Grade 2; E08511-1000 Compliant
- CSFM—California State Fire Marshal Approved
Specification Data
- Magnet size: 8 inches L x 1.75 inches W x 3 inches H
- Armature size: 6 inches L x 0.5 inch W x 2.75 inches H
- Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
Models
- M62FG-SASM: Weatherized Magnalock Face Mount, Conduit Fitting with SASM shock absorbing strike mount
- M62FGBD-SASM: Weatherized Magnalock Face Mount, Conduit Fitting with SASM shock absorbing strike mount, with Magnetic Bond & Door Position Sensors
Warranty
Also Known As
SECURITRON-M62FG-SASM,M62FGSASM, SN-M62FGSASM, HES-M62FGSASMFor Use With
Swinging and Sliding GatesManufacturer
SecuritronManufacturer Warranty
LifetimeModel Number
M62FG-SASMMount
Surface Mount (swinging & sliding gate brackets sold separately)Power Requirements
24VDC/12VDCUPC Code
784607038719Usage
Weather Resistant
1 Question asked on Securitron, M62FG-SASM Shock Absorbing Maglock for Outdoor Gates •
Q
Zachary Fay • 10/16/2025, 11:46:26 AM
I have a question about the wiring of the lock. Is the access control device, as shown in figure 13 in the installation manual, one of the options that we can purchase with the lock or is this a device that has to be supplied by me?
A
10/17/2025, 10:23:19 AM
We offer a wide range of Access Control Devices (keypads, RFID prox readers, push buttons etc) that can be used to lock/unlock this magnetic lock. In addition to these options, this lock can also work alongside many 3rd party access control systems as well. To better assist with your project and ensure you get everything needed for a complete system, please feel free to give us a call at 1-866-500-5625
