Altronix, AL175UL Switching Power Supply/Charger, UL294 Access Control

PRODUCT OVERVIEW

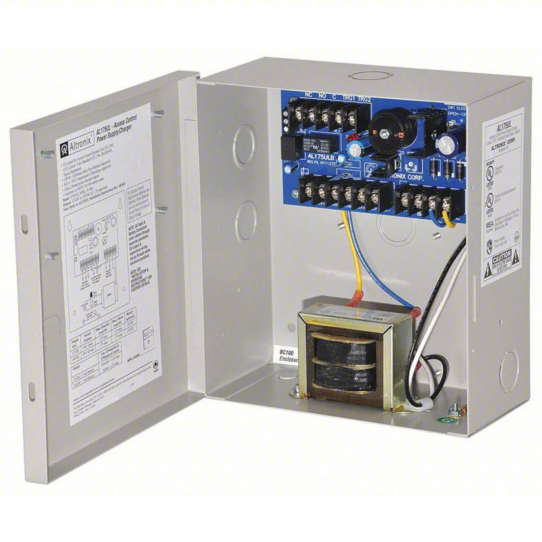

Altronix AL175UL Switching Power Supply/Charger converts a 115VAC 60Hz input into two (2) individually PTC protected 12VDC or 24VDC outputs.

LED indicators notify users of input and output status. The unit comes with a built-in charger for gel and sealed lead acid batteries. During an AC failure, the AL175UL will automatically switch over to battery backup power.

Features and Specifications

• Input:
• Power input 115VAC 60 Hz, 0.6 A
• Access Control trigger input
• Output:
• 12VDC or 24VDC selectable outputs
• 1.75A supply current
• Two (2) Class 2 Rated power limited outputs
• Fail-Safe/Fail-Secure lock output (switched)
• Auxiliary power output (unswitched)
• PTC protected outputs, rated @ 2.5A
• Filtered and electronically regulated output
• Short Circuit and thermal overload protection

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switchover to stand-by battery when AC Fails.

*Back-up Batteries Sold Separately

Supervision:

• AC fail supervision (form "C" contacts)
• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching)

Visual Indicators:

• Input and output status LED indicators.

Special Features:

• Lifetime Warranty

Agency Listings:

• UL Listed for Access Control System Units (UL294)
• cUL Listed for CSA Standard C22.2 No.205-M1983, Signal Equipment
• CSFM - California State Fire Marshal Approved
• NFPA 101 (Life Safety)

Dimensions

• Dimensions (approximate): 8.5 inch H x 7.5 inch W x 3.5 inch D (216mm H x 191mm W x 89mm D)

Specifications

• Input: 115 VAC, 60 Hz, 0.6 A; access control trigger input
• Output: Two Class 2 power-limited, PTC-protected outputs (rated 2.5 A), selectable 12 or 24 VDC, 1.75 A supply current
• Output Types: Fail-safe/fail-secure lock output (switched); auxiliary output (unswitched)
• Supervision: AC fail (Form C contacts); supervised fire alarm disconnect (latching with reset or non-latching)
• Battery Charger: Sealed lead acid or gel; automatic switchover; batteries sold separately
• Indicators: Input and output status LEDs
• Listings: UL 294; cUL (CSA C22.2 No. 205-M1983); CSFM; NFPA 101
• Use: Interior only
• Dimensions (approximate): 8.5 in H x 7.5 in W x 3.5 in D (216 x 191 x 89 mm)
• Warranty: Lifetime
