Altronix, AL175ULX Access Control Power Supply/Charger, 1.75A 12/24VDC output, UL294

Product Overview

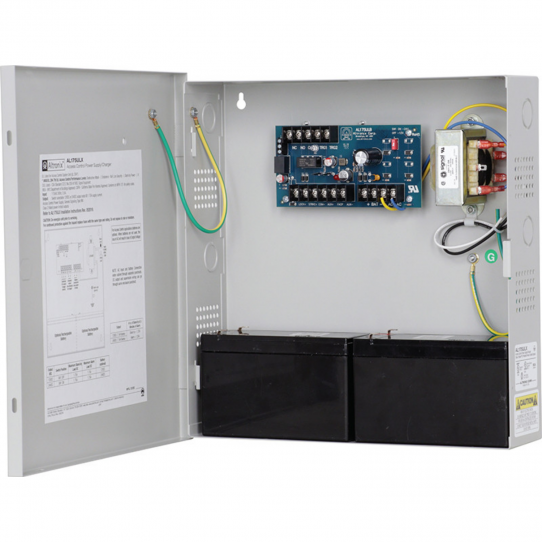

Altronix AL175ULX is a power-limited power supply/charger that converts 115VAC/60Hz input into two individually PTC protected auto-resettable 12VDC or 24VDC outputs (see specifications).

It is intended for use in applications requiring UL Listing for Access Control System Units (UL 294) and applications requiring an interface with the Fire Alarm Control Panels.

Features and Specifications

Input:

• 115VAC, 60Hz, 0.6A

Output:

• 12VDC or 24VDC selectable outputs
• 1.75A supply current
• Two (2) Class 2 Rated power limited outputs
• Fail-Safe/Fail-Secure lock output (switched)
• Auxiliary power output (unswitched)
• PTC protected outputs, rated @ 2.5A
• Filtered and electronically regulated output
• Short circuit and thermal overload protection

Battery Charging:

• Automatic switch over to stand-by battery when AC fails
• Maximun charge current: 400mA
• (Batteries Sold Separately)

Features:

• AC fail supervision (form "C" contacts).
• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Enclosure dimensions and weight:

• Wall mount enclosure for indoor use. Dimensions 13 inches W x 13.5 inches H x 3.25 inches D (330 mm W x 343 mm H x 83 mm D). 1/2 inch and 3/4 inch combination knockouts.
• Weights (approximate): Product Weight: 8.4 Lbs. (3.81 kg). Shipping Weight: 9.4 Lbs. (4.263 kg).

Agency Listings

• UL Listed For: Access Control System Units (UL294)
• cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment
• CSFM - California State Fire Marshal Approved
• MEA - NYC Department of Buildings Approved
• NFPA 101 (Life Safety)
• TAA Compliant
• NDAA Compliant
• BAA Compliant
