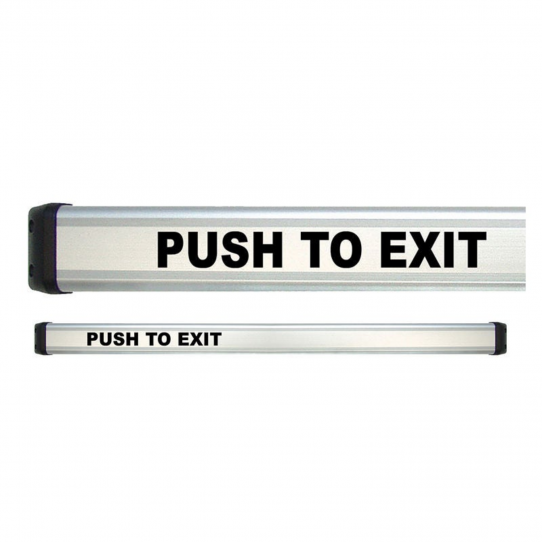

Alarm Controls, REB-1A Request to Exit Push Bar

Product Specifications

REB-1A provides mechanical activation for electronic release in a reliable, durable exit bar. Designed for use on electronically locked, non-fire-rated doors or as an initiate device for a delayed egress timer. Pressing the bar activates internal mechanical switches to release the lock.

Models

• REB-1A: Request to Exit Push Bar, DPDT relay, 36 inch length, Satin Aluminum Finish
• REB-1ADURO: Request to Exit Push Bar, DPDT relay, 36 inch length, US40 Duranodic/Dark Bronze Finish

*Replaces discontinued Part# REB-1

Standard Features

• Includes 16 foot 22 AWG 6 conductor cable and armored door cord
• Low profile design requires only 1/4 inch movement for activation
• Mechanical action activates DPDT relay
• 5A rated output to allow free egress or initiate an exit delay timer
• Redundant switches ensure reliable, fault tolerant operation
• All metal construction
• Indoor operation

Dimensions

• Length: 34-1/2 inches (for use on 36 inch Door)
• Height: 2-5/8 inches
• Depth: 1-5/8 inches (from mounting surface)

Electrical

• Max current 1.5A at 30 VDC

Operating Temperature

• -4 degrees to +185 degrees F (-20° C to +85° C)

Request to Exit Bar Usage Notes:

As the REB-1A is normally used to permit egress on an electrically secured door, ensure that all applicable building and fire codes are being followed. Verify installation with local building and/or fire prevention codes and regulations. The REB-1A may not be used on a fire rated door that requires a fire rated latch. In some instances however, fire doors are permitted on openings where a fire rated barrier is not required. Use of the REB-1A should always be verified and approved through local building code and/or fire prevention agencies.

Specifications

• Model: REB-1A Request to Exit Push Bar
• Manufacturer: Alarm Controls
• Relay: DPDT, 5 A rated output; maximum current 1.5 A at 30 VDC
• Bar Movement: 1/4 inch
• Dimensions: 34-1/2 inches L x 2-5/8 inches H x 1-5/8 inches D (for a 36 inch door)
• Operating Temperature: -4° F to +185° F (-20° C to +85° C)
• Cable: 16 feet, 22 AWG, 6 conductor, with armored door cord
• Finish: Satin aluminum (REB-1A); US40 duranodic/dark bronze (REB-1ADURO)
• Construction: All metal; redundant switches
• Use: Indoor; electronically locked, non-fire-rated doors
• Replaces: REB-1 (discontinued)
