600WP, 600lb Weather-proof Magnetic Gate Lock

$226.10 $266.00

Overview

Alarm Controls Corporation 600 pound Weather-proof Single Magnetic Gate Lock, model 600wp. The 600wp provides a minimum of 600 pounds holding force, provides weatherproof design ideal for sliding and swinging gates.

Features:

  • Ideal for sliding or swinging gates
  • 600lbs holding force
  • 12/24vdc operation
  • Completely sealed in stainless steel case

More Info +


Options

Qty

Product Details

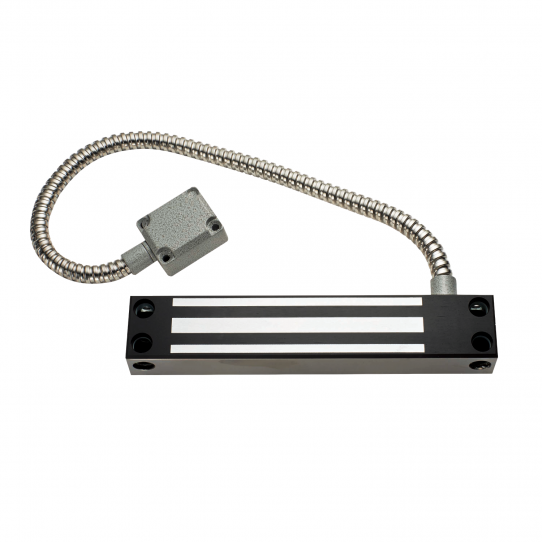

600lb Weather-proof Magnetic Gate Lock by Alarm Controls

Product Overview

Alarm Controls Corporation 600 pound Weather-proof Single Magnetic Gate Lock, model 600wp. The 600wp provides a minimum of 600 pounds holding force, provides weatherproof design ideal for sliding and swinging gates. The 600wp is 12 or 24 VDC operation.

Product Features

  • 12 inch color coded leads in armored cable with metal end cap
  • Ideal for sliding or swinging gates
  • Non-aluminum parts are plated to resist corrosion
  • Use 23/64 inch diameter drill for blind nuts provided with lock
  • Self drilling TEC screws
  • Completely sealed in stainless steel case
  • Limited lifetime warranty

Specifications

  • 600 lbs holding force
  • Magnet size: 9-7/8 inch L x 1-11/16 inch H x 1 inch W
  • Armature size: 7-1/4 inch L x 1-7/16 inch H x 5/8 inch W
  • Operates on 12 or 24 VDC, switch selectable
  • Current Draw: 440 mA at 12 VDC, 260 mA at 24 VDC
  • Operating temperature: +14 to +131F [-10 to +55C]
Current Selling Price
226.1
Finish
Stainless Steel
Maglocks.com Rating
Better
Manufacturer
Alarm Controls
Manufacturer Warranty
Lifetime
Model Number
600WP
Power Requirements
24VDC/12VDC
Status Monitor
Not Available
1 Question asked on 600WP, 600lb Weather-proof Magnetic Gate Lock



Q Bill Heintz • 04/21/2020, 12:12:40 PM Does your 600WP have a 1/2 or 3/4 conduit fitting if you remove the supplied cord? What is the striker plate made of? We need material that will stand up to wash down with acid or NaOH.
A 04/22/2020, 12:36:27 PM No, the 600WP uses a custom fitted armored cable. For a standard conduit fitting please see the 1200lb model (part# 1200WP). Per the datasheet, the lock body is "Completely sealed in a Stainless Steel case" and "Non-aluminum parts are plated to resist corrosion". These are high quality magnetic locks that are used on all types of outdoor gates, marinas, tool cribs, etc without issue. For extreme use applications extra care may be required to wash off/neutralize any acids or look into applying a corrosion inhibitor. Give us a call and we would be happy to discus in further detail 1-866-500-5625
