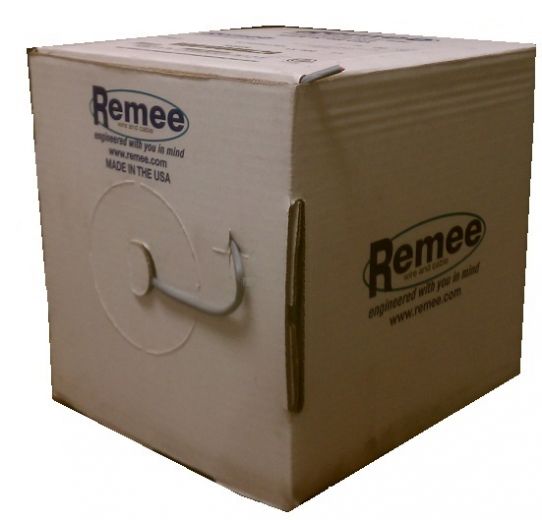

18 Gauge, 4 Conductor Plenum Wire. 500ft Box

$312.00

18 Gauge, 4 Conductor general purpose wire. For use on maglocks, electric strikes, motion sensors, push buttons and most low voltage power connections.

Recommended when connecting a motion sensor, push button and magnetic lock without door position sensor to an access control panel.

Read More about 18 Gauge, 4 Conductor Plenum Wire. 500ft Box

Technical Specifications

  • Wire Gauge: 18 AWG
  • Conductors: 4
  • Conductor Type: Copper, stranded
  • Rating: Plenum (CMP, FT6)
  • Length: 500 ft box
  • Jacket Color: White (subject to change)
  • Listings and Codes: NEC Article 800, C(ETL)US CMP
  • Model: 18/4-P-500
  • Manufacturer Model: Remee 725184L2W

Also Known As:

18-4-P-500, 18 Gauge, 4 conductor plenum wire, Remee 725184L2W

Manufacturer:

Remee

Manufacturer Warranty:

1 Year

Model Number:

18/4-P-500

Plenum Rated:

Yes

Wire Conductors:

4

Wire Gauge:

18

Wire Length:

500'

Wire Shielding:

Unshielded
