600D, 600lb Holding Force Double Magnetic Lock

600lb Double Magnetic Lock by Alarm Controls

Product Overview

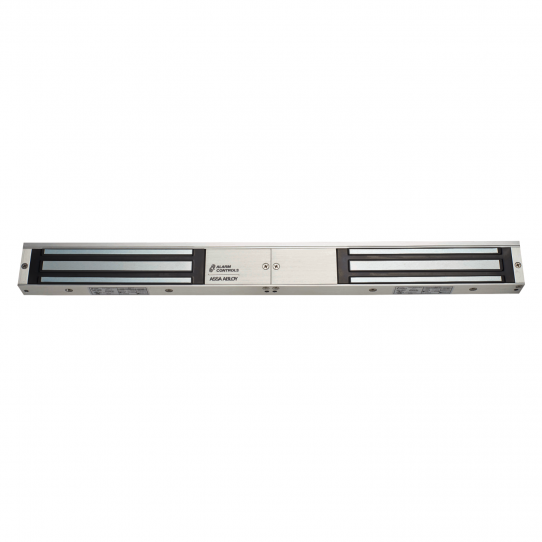

Alarm Controls Corporation's 600 pound Double Magnetic Lock, model 600D. The 600D provides a minimum of 600 pounds holding force for each lock and utilizes the ACC E-Z mount system for easy installation. The 600D is 12 or 24 VDC, jumper selectable and can be used with any access control system.

Product Features

• 600 pound minimum holding force, each lock
• E-Z mount system, No special tools required

Options

• 600D - 600 pound Double Door Magnetic Lock
• 600DLB - 600 pound Double Door Magnetic lock with indicating LED, Bond Sensor, Door Status Sensor

Specifications

• Models: 600D; 600DLB (adds indicating LED, bond sensor and door status sensor)
• Holding Force: 600 lb minimum per lock
• Voltage: 12 or 24 VDC, jumper selectable
• Current Draw: 400 mA per magnet at 12 VDC; 200 mA per magnet at 24 VDC
• Magnet Size: 19 3/4 inches L x 1 7/8 inches H x 1 inch W
• Armature Size: 7 1/4 inches L x 1 7/8 inches W x 5/8 inch D
• Lock Features: Built-in arc suppression; instant release, no hysteresis
• Listings: UL 294; UL 10C fire rated; CAN/ULC-S104 fire door conformant; UL 864; CAN/ULC-S527
• Finish: Clear Anodized (US28) standard; Duronic (US40) special order
• Warranty: Lifetime

Compatibility and Options

• Compatible with any access control system
• Non-aluminum parts are plated to resist corrosion
