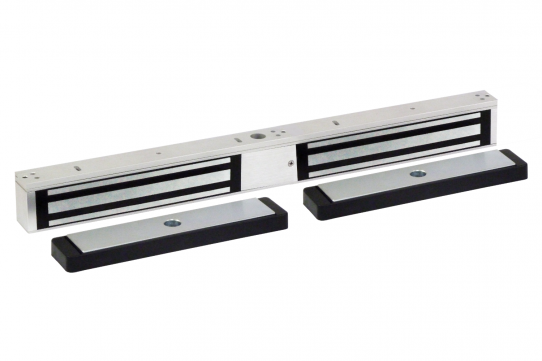

SDC 352 Narrow Line Double EMLock, 1200lbs
$644.00
$920.00
Product Overview
The 350 EmLock retrofits the discontinued Locknetics 350+ magnetic lock without modifications. Since the Locknetics manufacturing facility is now closed, the SDC 350 EmLock has been designed to utilize the same mounting template, physical dimensions and features. Plus, the SDC 350 EmLock includes additional features such as full monitoring and EmLock Quick Interlocking Quick Mount Bracket for faster installation.
Standard Features
- Door status, lock status and Bi-color LED
- Interlocking quick mount assembly
- Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws
- Wire access chamber with terminal block
- Armature housing prevents sagging, provides quieter operation and superior appearance
- Dual voltage 12/24VDC
- 628 Clear anodized aluminum
- Exceeds ANSI/BHMA A156.23 Grade 1
Model
- 352V Double Narrow Line EmLock, 1200lbs holding force. LED Indicator, Magnetic Bond and Door Status outputs standard.
Mechanical Specifications
- Holding Force: 1200 lbs / 545 kg per door leaf
- Lock: 25 inches L x 2-1/8 inches H x 1-11/16 inches W (635 x 54 x 43mm)
Electrical Specifications
- Voltage: 12/24VDC Auto Sensing
- Current: 1080mA @ 12VDC, 600 mA @ 24VDC
- 2 Magnetic Bond Sensor: SPDT outputs, 250mA max. @ 12/24VDC
- 2 Door Status Sensor: SPDT outputs, 250mA max. @ 12/24VDC
- 2 LED Indicator: Green-Secure, Red-Unlocked
Also Known As:
SZ-352V, SDC-352VFinish:
AluminumManufacturer:
SDC SecurityManufacturer Warranty:
LifetimeModel Number:
352vPower Requirements:
24VDC/12VDCStatus Monitor:
StandardUPC Code:
712905203324
2 Questions asked on SDC 352 Narrow Line Double EMLock, 1200lbs •
Q
RON GREIG • 04/21/2020, 7:37:09 AM
Do I need a separate power supply for the SDC 352? If so, which one is suggested?
A
04/22/2020, 10:31:26 AM
Yes, this lock will require a DC power supply (1080mA @ 12VDC/ 600 mA @ 24VDC). See power supply model 631RF
https://www.maglocks.com/631rf-15a-12-24-vdc-power-supply-ul294.html
Q
Victor Altea • 11/07/2024, 8:36:24 AM
Is there a black finish for the shell of the SDC Narrowline 352?
A
11/08/2024, 10:14:44 AM
Currently the 352V lock is only available in the standard Aluminum finish. For a 1200lb Double Maglock that can be ordered in a variety of "special-finish" options, please see the 1572 series or give us a call at 1-866-500-5625
