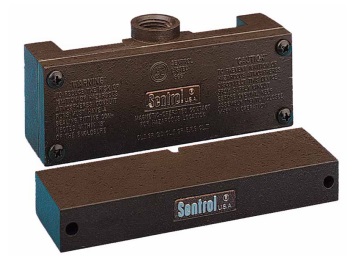

2847T-M Explosion Proof Door Contact, SPDT Configuration, IP64
Overview
Designed to make installation easier, these position sensors have earned their reputation for quality. Every reed connections is hand soldered and the reeds in all models are environmentally sealed.
Description:
• Contact Configuration: SPDT (single pole, double throw)
• Explosion-proof UL listed for hazardous location classes
• Class I Group C, D
• Class II Group E, F, and G
• IP 64
• 1/2" Thread NPT Coduit Connection
Product Details
Product Overview
Designed to make installation easier, these position sensors have earned their reputation for quality. They are built for durability and dependability. Most are conservatively rated at 100,000 cycles under full load, and 10,000,000 cycles under dry circuit. Every reed connections is hand soldered and the reeds in all models are environmentally sealed. Explosion Proof Door Contact Position sensors are tested before they leave the factory - 100% of the time
Applications
- Explosion-proof; UL listed for hazardous location classes:
- Class I Group C, D
- Class II Group E, F, and G
General Specifications
- Enclosure UL Explosion Proof, Die Cast Aluminum
- Temperature Range -40°F to -180°F (-40°C to 80°C)
- Hermetically Sealed Reed Switch Encapsulated in Polyurethane
- NEMA Rating 1, 2, 3, 5, 12
- Protection Class IP64
- Response Time 1 msec
- Maximum Life Cycles
- 100,000 Under Full Load
- 10,000,000 Under Dry Circuit
- Conduit Connection 1/2 inch Thread NPT
- Switch has pre-tamper plate
- UL Listed All Models
Electrical Specifications
- Contact Configuration: SPDT (single pole, double throw)
- Load Rating: 3W/VA (AC/DC)
- Switching Voltage: 30V (AC/DC)
- Switching Current: 0.25A (AC/DC)
- Sense Range Nominal: 1.0 inch (2.5cm)
- Terminal Type: #6 Screw
