1200LB Magnetic Lock, LED, Bond sensor, Door Sensor
$388.20
$456.71
1200lb Magnetic Lock, LED, Bond sensor and Door Sensor
Product Overview

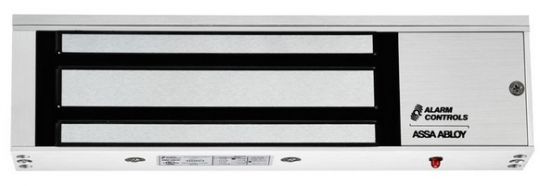

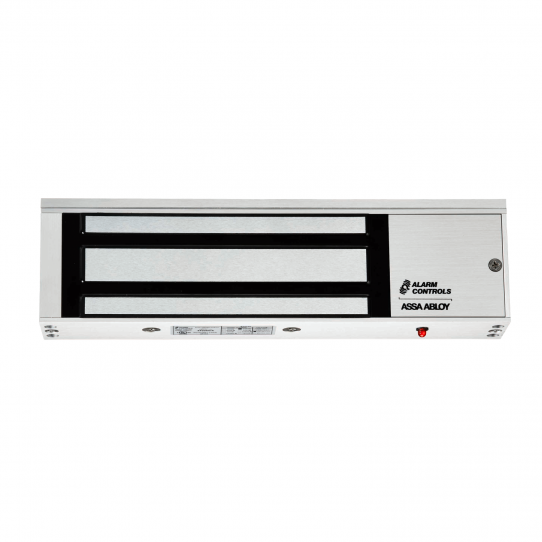

Alarm Controls Corporation's 1200 pound Single Magnetic Lock, model 1200LB. The 1200LB includes LED, Bond sensor and Door status sensor and provides a minimum of 1200 pounds holding force and utilizes the ACC E-Z mount system for easy installation. The 1200LB is 12 or 24 VDC, jumper selectable and can be used with any access control system.
Product Features
- 1200 pound minimum holding force
- Bi-color LED, S.P.D.T. (Single Pull Double Throw) 3amp relay contacts signals a powered amd securely sealed door
- E-Z mount system, No special tools required
Specifications
- Holding Force: 1200 lb minimum
- Voltage: 12 or 24 VDC, jumper selectable
- Current Draw: 505 mA at 12 VDC; 260 mA at 24 VDC
- Magnet Size: 10 1/2 inches L x 2 7/8 inches H x 1 1/2 inches W
- Armature Size: 7 3/8 inches L x 2 3/8 inches W x 9/16 inches D
- Indicator and Sensors: Bi-color LED; bond sensor and door status sensor, SPDT 3 A relay contacts
- Lock Features: Built-in arc suppression; instant release, no hysteresis
- Listings: UL 294; UL 10C fire rated; CAN/ULC-S104 fire door conformant; UL 864; CAN/ULC-S527
- Finish: Clear Anodized (US28) standard; Duronic (US40) special order
- Warranty: Lifetime
Compatibility and Options
- Compatible with any access control system
- Non-aluminum parts are plated to resist corrosion
- Dress-up covers in polished chrome and brass are available. Give us a call
Also Known As:
1200lb, 1200LB, AC1200LB, ALA3001200LBFinish:
(selectable)Manufacturer:
Alarm ControlsManufacturer Warranty:
LifetimeModel Number:
1200LBPower Requirements:
24VDC/12VDCStatus Monitor:
StandardUPC Code:
604840236393
2 Questions asked on 1200LB Magnetic Lock, LED, Bond sensor, Door Sensor •
Q
Bacus Arline • 08/03/2023, 10:03:49 AM
Can this be installed on glass doors? Are there any other attachments that's required?
A
08/04/2023, 1:37:36 PM
If the entire door is glass (no top metal rail) then an additional Glass Door Bracket or Glue Kit would be required. To better assist with these types of projects please send us photos of the door to [email protected] or give us a call direct at 1-866-500-5625
Q
Jason Lisby • 12/06/2023, 12:57:23 PM
Can this be installed Out Doors?
A
12/08/2023, 12:32:01 PM
No, this 1200LB maglock is not designed for outdoor use. For outdoor gates & doors I would suggest looking at the (1200WP), (M62), (1570 series) locks. If you require further assistance with this project or would like a specific product recommendation, please give us a call direct at 1-866-500-5625
