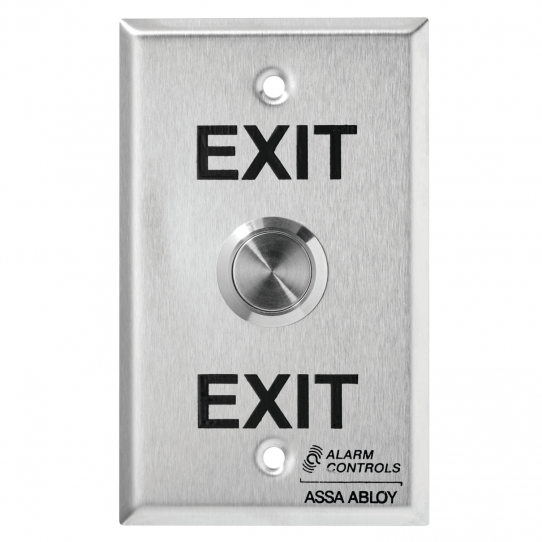

TS-23 Vandal, Weather Resistant Exit Single Gang Button
Processing...

15% Off MSRP

TS-23 Vandal, Weather Resistant Exit Single Gang Button

$111.35 $131.00

Overview

The TS-23 request to exit station, with vandal resisitant push button, provides an effectives means of locking an exit door while still providing egress during an emergency.

Vandal resistant push buttons are designed for indoor, outdoor, commercial and industrial applications.

  • Vandal Resistant .75 inch dia. brass nickelplated puchbutton
  • Labeled EXIT
  • Momentary Action Switch
  • Momentary Action Switch D.P.D.T. contacts rated 10A.@35 VDC
  • Switch Terminated with 10 inch leads
  • Switch Mounted on single gang stainless steel wallplate
  • Switch Open 1.5 inches behind plate
  • Switch Constructed to meet IP65 standard DIRECT WATER SPRAY

More Info +


Qty

Product Details

Product Features

The TS-23 request to exit station, with vandal resisitant push button, provides an effectives means of locking an exit door while still providing egress during an emergency.

Vandal resistant push buttons are designed for indoor, outdoor, commercial and industrial applications.

  • Vandal Resistant .75 inch dia. brass nickelplated puchbutton
  • Labeled EXIT
  • Momentary Action Switch
  • Momentary Action Switch D.P.D.T. contacts rated 10A.@35 VDC
  • Switch Terminated with 10 inch leads
  • Switch Mounted on single gang stainless steel wallplate
  • Switch Open 1.5 inches behind plate
  • Switch Constructed to meet IP65 standard DIRECT WATER SPRAY
UL294
Also Known As
TS-23, TS23, ALA300TS23
Manufacturer
Alarm Controls
Manufacturer Warranty
1 Year
Model Number
TS-23
Mount
Single Gang
Operation Momentary Timer Maintained
Momentary
Power Requirements
24V/12V AC/DC
Type
Vandal Resistant
UPC Code
604840970167
