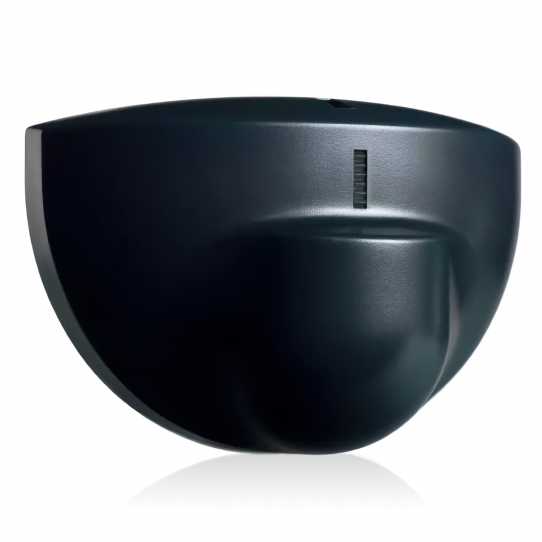

BEA, 10EAGLEHM Motion Sensor for Automatic Doors, IP54 **DISCONTINUED**

***10EAGLE has been DISCONTINUED, see replacement options in Related Products***

Description

BEA’s Eagle Family of motion sensors is designed for the activation of automatic pedestrian doors. The Eagle is universally compatible with all makes and models of swinging, sliding and revolving automatic doors. Unidirectional radar increases energy efficiency by detecting approaching traffic while ignoring motion away from the door.

Technical Specifications

• Supply Voltage: 12V to 24V AC/DC
• Sensor Technology: Microwave and microprocessor
• Detection Mode: Motion
• Transmitter Frequency: 24.150 GHz
• Transmitter power density: < 5 mW/cm
• Relay: (1) SPDT, 42 VAC/VDC, 1A max (resistive)
• Mounting height:
• 10Eagle: from 6 to 13 feet **DISCONTINUED, see replacement in Related Products**
• 10Eagle1HM: from 10 to 16-1/2 feet **DISCONTINUED, see replacement in Related Products**
• Degree of Protection: IP54
• Temperature range: -4° F to +131° F
• Cable Length:
• 10Eagle - 8 ft
• 10Eagle1HM - 30 ft

Models

• 10Eagle: Microwave Motion sensor, Standard Mounting Height, 6 to 13 feet **DISCONTINUED, see replacement in Related Products**
• 10Eagle1HM: Microwave Motion sensor, High Mounting Height, 10 to 16-1/2 feet **DISCONTINUED, see replacement in Related Products**

Specifications

• Model: 10EAGLE and 10EAGLE1HM Motion Sensors (DISCONTINUED)
• Manufacturer: BEA
• Sensor Technology: Microwave and microprocessor, 24.150 GHz
• Detection Mode: Motion (unidirectional radar)
• Voltage: 12 V to 24 V AC/DC
• Relay: 1 SPDT, 42 VAC/VDC, 1 A (resistive) maximum
• Mounting Height: 10EAGLE 6 feet to 13 feet; 10EAGLE1HM 10 feet to 16-1/2 feet
• Cable Length: 10EAGLE 8 feet; 10EAGLE1HM 30 feet
• Operating Temperature: -4° F to +131° F
• Protection: IP54
• Mount: Surface mount
• Finish: Black
• Use: Automatic swinging, sliding, revolving and industrial doors; weather resistant
• Status: Discontinued; replacement options listed under Related Products
