Trine 4850 Axion Surface Mount Electric Strike, Rim Exit

$472.00 $590.00

The Universal 4850, 1/2 inch Surface mounted strike for Rim Panic Devices. For use with surface mounted rim exit devices with up to 1 throw. For use in new or replacement installations in wood or metal door frames and tight installs.

Features

  • 1/2” thick Surface Mount that comes with a 1/4” and a 1/8” Spacer -- this provides the flexibility of up to 4 different sizes!
  • Cavity is completely open -- which means the 4850 allows for an incremental depth up to a 1 inch throw -- competitor backplates do not allow for this versatility.
  • Built-in electronics automatically allow 11 thru 28 DC Voltage input, with surge and kickback protection
  • Comes with Trines Patented 6-Pin Anchoring System.
  • Contains a one piece locking mechanism with one Solenoid, less parts mean less problems.
  • Fail-safe/Fail-secure (field selectable).
  • BHMA Grade 1 Electric Strike, 1,000,000+ Life cycles, 1,500+ lbs. Holding Force
  • No cutting or worrying about voltage means you are always prepared.
    • Read More

    Product Overview

    For use with surface mounted rim exit devices with up to 1 throw. For use in new or replacement installations in wood or metal door frames and tight installs

    Frame Application

    • Metal
    • Wood

    Electrical

    • .5 Amps @ 12VDC
    • .25 Amps @ 24VDC

    Standard Features

    • Grade 1 Strike - 1/2 inch thick Surface Mount that comes with a 1/4 inch and a 1/8 inch Spacer - this provides the flexibility of up to 4 different sizes!
      • Allows for up to 1 inch throw.
      • NO CUTTING OF THE FRAME
    • Built-in electronics automatically allows 11 thru 28 DC Voltage input - with surge and kickback protection included.
    • Comes with Trine's Patented 6-pin Anchoring System for extra strength and stability.
    • Contains a one piece locking mechanism with one Solenoid - less parts means less problems.
    • Grade 1 strike: 1,500 lbs Holding Force
    • 1,000,000+ Life Cycles.

    Also Known As:

    TRI100485032D, TRINE-4850-32D

    For Use With:

    Rim Mount Exit Device

    Grade:

    Grade 1

    Manufacturer:

    Trine

    Manufacturer Warranty:

    2 Year

    Model Number:

    4850

    Power Requirements:

    24VDC/12VDC

    Status Monitor:

    Not Available

    UPC Code:

    822786007987

    Duty Rating:

    continuous (dc) / intermittent (ac)

    Environment:

    indoor

    Fire-Rated Code:

    no

    Frame Material:

    hollow-metal, wood, aluminum

    Lockset Type:

    rim

    Pre-load Capable:

    no

    Strike Fail State:

    field-selectable

    Strike Installation:

    surface

    Strike Voltage:

    12/24VDC
    1 Question asked on Trine 4850 Axion Surface Mount Electric Strike, Rim Exit •
    Ask a Question
    Q rob hawk • 06/23/2020, 3:04:28 PM the wires have no negative or positive does it not matter?
    A 06/23/2020, 3:44:50 PM Correct, polarity does not matter so you can hook up the + and - to either of the two wires. Operating Voltage must be between 12-24 VDC

    Related Products

    Cobra Controls CC-3800-EM waterproof Prox Reader, Keypad
    Cobra Controls CC-3800-EM waterproof Prox Reader, Keypad
    Select Keypad and Proximity Reader Style:

    Options:

    Starting at $199.00
    sale

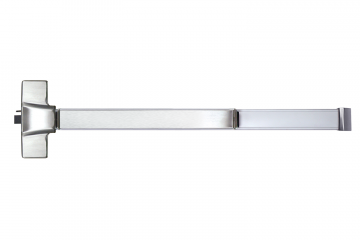

    SDC Spectra S6101 Exit Only Push Bar (Dummy Trim Options)
