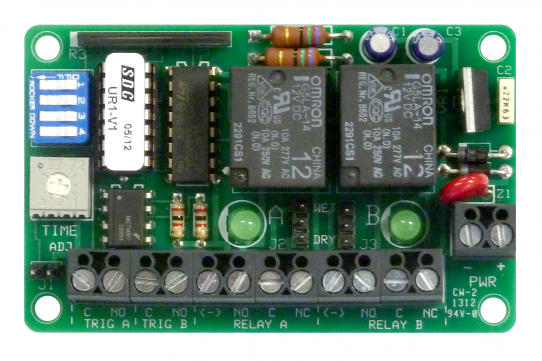

SDC, UR-1 Universal Controller Input/Output Board, Two Relays
$90.30
$129.00
Overview
Relay configurable control for one or two locks (trigger, timed, latching or sequenced)
Product Details
PRODUCT OVERVIEW
The award-winning UR series is the same simple, reliable, flexible solution to door control trusted in thousands of installations since 1998.
UR-1 models provide a choice of individual dip switch selectable relay operating modes or system modes for lock control, monitoring, communicating door or lock system logic. Relay output modes may be individually configured as a Dry Contact or Voltage (wet) Output. Relays may be configured to work independently or in tandem with adjacent relay.
FEATURES
- Relay configurable control for one or two locks (trigger, timed, latching or sequenced)
- Microprocessor based system logic
- Multiple Selectable relay & system logic modes
- SPDT outputs jumper selectable wet and/or dry
- Time delay relays, adj. 1-60 sec
- Optically isolated dry inputs
- Auto-sensing dual voltage
- Visual status indicators (LED)
Specifications
- Input Voltage: 12 or 24VDC (auto-sense)
- Input Current: 120 mA @ 12VDC, 175 mA @ 24VDC (max)
- Inputs: SPST-N/O (2)
- (a) Two Dry for Individual Relay
- (b) Tandem-Simultaneous Activation
- Outputs: Wet and/or Dry *wet voltage same as module input
- (a) Two Wet and/or Dry
- (b) Tandem-Simultaneous Activation
- Relay Contact: SPDT (2), 7 amp @ 30 VDC inductive
- Dimensions: 3.20 inch W x 2.00 inch L x 1.0 H
MODEL
- UR-1: Microprocessor Controller Board, Two Relays
*Fits all SDC Power Supplies (sold separately). Requires 1 Module space. Supplied with mounting screws and standoffs for J-box mounting.
