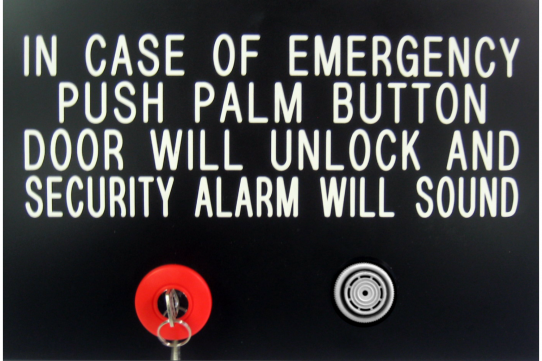

SDC, APB1000A Emergency Access Panel with Siren

Product Overview

SDC line of emergency door releases includes the APB1000A emergency access panel for elevator lobby door systems. It provides a physical method of unlocking an electronic lock in the event of an emergency and includes a mushroom button with key reset and siren.

Features

• Latching Mushroom push button
• (1) N.O. & (1) N.C. contact
• Easy to read activation instruction
• Integrated siren sounds upon activation
• Key reset
• Push button utilizes screw terminal wire connections
• Siren utilizes quick-connect connection tabs

Model

• APB1000A: Emergency Access Panel

Specification

• Input: 12-28VDC
• Current Draw: 13mA @ 24VDC
• Material: Rowmark Plastic
• Siren: Piezo
• Sound Level: 93 dB @ 30 cm (max)

Dimensions

• 12 inches L x 8 inches W x 3 inches D

Certifications

• Los Angeles Building Code
• CBC 1010.1.9.13 Access-Controlled Elevator Lobby Doors in High-Rise Office Buildings

Specifications

• Model: APB1000A
• Also known as: SZ-APB1000A, SDC-APB1000A
• Manufacturer: SDC Security
• Type: Emergency access panel with siren (for elevator lobby door systems)
• For use with: Emergency release/override of fail-safe locks
• Operation: Latching mushroom push button with key reset
• Contacts: (1) N.O. and (1) N.C.
• Input: 12-28 VDC
• Current draw: 13 mA at 24 VDC
• Siren: Piezo, 93 dB max at 30 cm
• Material: Rowmark plastic
• Dimensions: 12 inches L x 8 inches W x 3 inches D
• Connections: Screw terminals (push button); quick-connect tabs (siren)
• Certification: Los Angeles Building Code CBC 1010.1.9.13 (access-controlled elevator lobby doors in high-rise office buildings)
• Usage: Interior use only
• UPC: 712905178257
• Warranty: 5 Year
