SDC 800 Narrow Mount 1/4 inch Aluminum Plate Key Switch

SDC Security Door Controls 800 Series Vandal Resistant Narrow Mount Key Switch

Product Overview

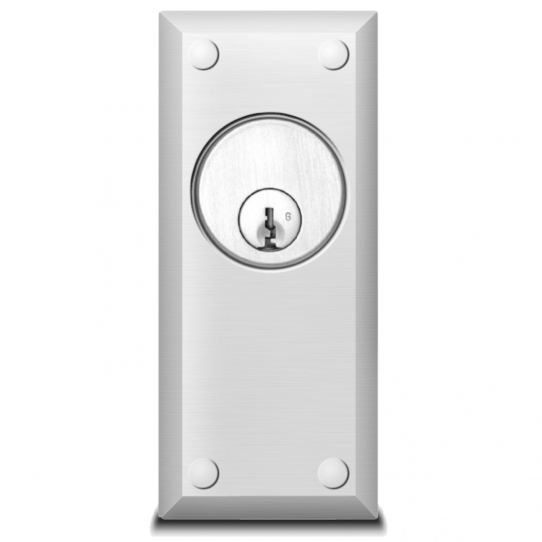

Vandal resistant narrow mount key switches feature a 1/4 inch Aluminum faceplate with key cylinder recess and security screws and anti-tamper plugs.

Models

• 801ALN SDC Key Switch AA (on-off) SPDT, 6A.
• 802ALN SDC Key Switch Momentary SPDT 6A.
• 804ALN SDC Key Switch Timer module, Adj. 1-60 Sec. SPDT 2A.
• 805ALN SDC Key Switch AA (on-off) DPDT 6A.
• 806ALN SDC Key Switch Momentary DPDT 6A.
• 807ALN SDC Key Switch (L) Momentary SPDT, (R) Momentary SPDT 6A.
• 808ALN SDC Key Switch (L) Momentary SPDT, (R) AA (on-off) SPDT 6A.
• 809ALN SDC Key Switch (L) AA (on-off) SPDT, (R) AA (on-off) SPDT 6A.
• 810ALN SDC Key Switch (L) Timer Module 1-60 Sec. 2A SPDT, (R) AA (on-off) SPDT 6A.
• 811ALN SDC Key Switch (2)Momentary SPDT 6A.
• 812ALN SDC Key Switch (L) Momentary DPDT, (R) AA (on-off) DPDT 6A.
• 813ALN SDC Key Switch (L) AA (on-off) DPDT, (R) AA (on-off) DPDT, 6A.

*note, mortise key cylinder sold separately or to be provided by installer

Specifications

• Vandal resistant cylinder recess
• 1/4 inch Aluminum Plate
• Security spanner screws
• 7 inch Wire Leads
• Compatible with 1-1/8 inch and 1-1/4 inch standard and interchangeable core mortise key cylinders (supplied by others).
• Large actuator assembly for positive consistent circuit activation.

Options

• Anti-Tamper switch
• Green and Red LED Status Indicators Buzzer May be wired to sound when door is unlocked.
• Key cylinder with two keys

*800 series is only available in AL- 628 Anodized Aluminum finish

Product Use

SDC key switch assemblies provide an economical method of providing authorized control for a variety of applications. A choice of several contact configurations ensure compatibility with virtually any system. Key switch assemblies are compatible with U.S. standard 1 inch and 1 3/8 inch mortise key cylinders and interchangeable core cylinders*. Compatibility with a new or existing facility mechanical key system is maintained. SDC's 800AL series vandel resistant switch assemblies come standard with 1/4 inch thick aluminium faceplates and a heavy duty rated switches. Available in a narrrow faceplate size to mount directly to the door frame or single gang sizes to be box mounted.

• 1/4 inch thick aluminium faceplate
• Alternate action or momentary
• SPDT or DPDT
• 22 gauge wire leads, 7 inch
• Tamper resistant, recessed cylinder
• Tamper resistant spanner screws
• 1 inch and 1 3/8 inch mortise cylinder compatible
• Large actuator for positive and consistent activation
