SDC 6 X 6 Square Push Plate Switches
$98.00
$140.00
SDC 6 inch X 6 inch Square Push Plate Switches
6 inch x 6 inch Square Push Plate Switch. Pressing Any Part of the Push Plates 6 inch x 6 inch Active Area Causes Switch Actuation.
Product Overview
For Handicap Access, Automatic Door Activation Request-to-Exit Applications
Models

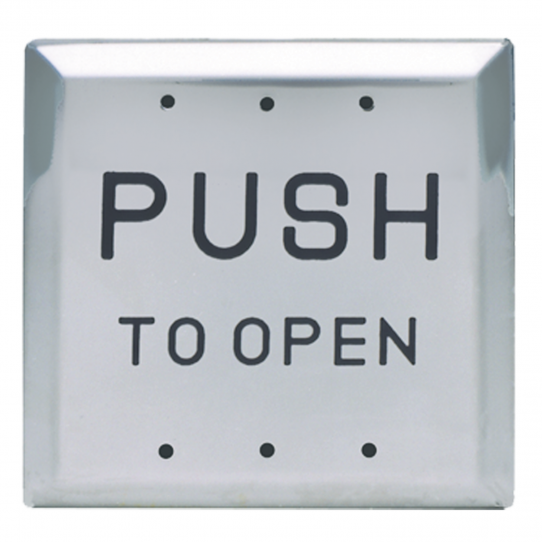

- 482O6U - Push to Open, black infill. SPDT
- 482A6U - Wheelchair Logo Push to Open, blue infill. SPDT
- 484O6U - Push to Open, black infil. DPDT
- 484A6U - Wheelchair Logo Push to Open, blue infill. DPDT
Specifications
- Mounting Plate: Heavy Duty 1/8 inch (3.2mm) mounting plate
- Faceplate: Heavy 18 Gauge (1.02mm), 630/US32D Satin Stainless Steel Standard
- Legends: Bold debossing or engraving with black or blue infill
- Contacts: SPDT or DPDT, 15A @ 125/250VAC; UL 1054, CSA Listed
- Depth: SPDT-5/8 inch deep, DPDT-1-1/2 inch deep
- Box: 1 Gang or 2 Gang Recessed or Surface Box Mount
- Weight: 0.75 lbs
Options
Wireless receiver transmitter option available. Eliminates the need to run wire from the button to the operator.
