SDC 4-1/2 X 4-1/2 Square Push Plate Switches
Processing...

SDC 4-1/2 X 4-1/2 Square Push Plate Switches

$61.60 $88.00

Overview

Push Plate Switches - Hardwired * Wireless option available.

For Handicap Access, Automatic Door Activation & Request-to-Exit Applications.

More Info +


Select Model:
Options

Qty

Product Details

Product Overview

SDC 4-1/2 inch X 4-1/2 inch Square Push Plate Switches

For Handicap Access, Automatic Door Activation and Request-to-Exit Applications

Models

  • 482O4U - Push to Open, black infill. SPDT

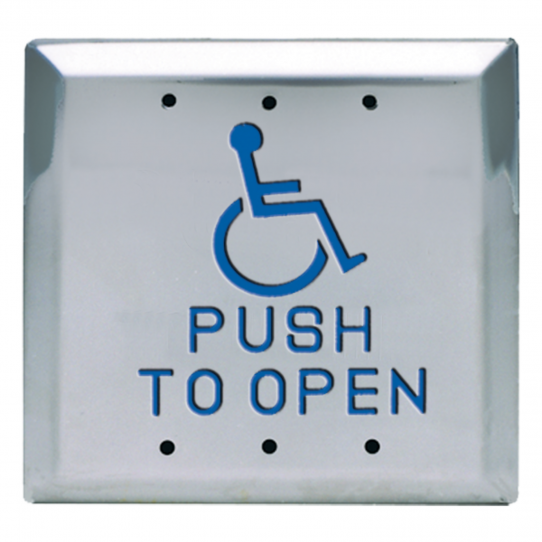

  • 482A4 - Wheelchair Logo Push to Open, blue infill. SPDT
  • 484O4U - Push to Open, black infill. DPDT
  • 484A4U - Wheelchair Logo Push to Open, blue infill. DPDT

Specifications

  • Mounting Plate: Heavy Duty 1/8 inch (3.2mm) mounting plate
  • Faceplate: Heavy 18 Gauge (1.02mm), 630/US32D Satin Stainless Steel Standard
  • Legends: Bold debossing or engraving with black or blue infill
  • Contacts: SPDT or DPDT, 15A @ 125/250VAC; UL 1054, CSA Listed
  • Depth: SPDT, 5/8 inch deep, DPDT, 1-1/2 inch deep

Options

Wireless receiver transmitter option available. Eliminates the need to run wire from the button to the operator.

Current Selling Price
61.6
Maglocks.com Rating
Best
Manufacturer
SDC Security
Manufacturer Warranty
2 Year
Model Number
48x4U
Mount
Single Gang,Double Gang
Operation Momentary Timer Maintained
Momentary
Power Requirements
24VDC/12VDC
Type
Basic
