SDC 410 Series Narrow 2 inch Exit Switch
Processing...

30% Off MSRP

SDC 410 Series Narrow 2 inch Exit Switch

$59.50 $85.00

Overview

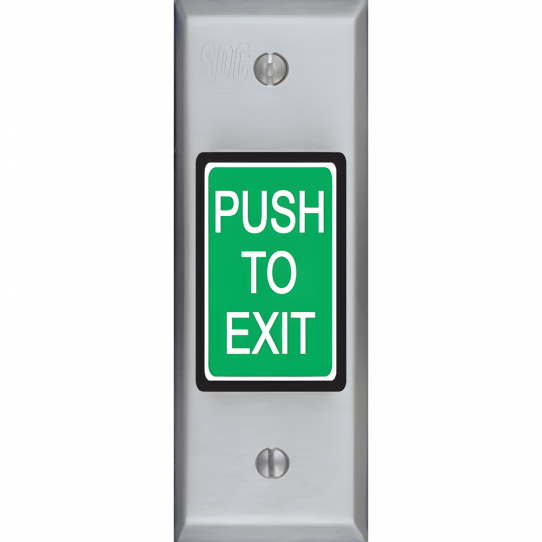

This narrow frame mount exit switch assembly includes a large push button on a narrow frame mount plate with push switch signage PUSH TO EXIT.

More Info +


Select Model:
SELECT FINISH (U - STAINLESS STEEL STANDARD, ALL OTHER SPECIAL ORDER 4-WEEKS):

Qty

Product Details

Product Overview

The illuminated switch button is two inches square for easy activation and is visually conspicuous. The high impact resistant material stands up to abuse. The “PUSH TO EXIT” sign complies with NFPA requirements.

Model

  • 412NU Momentary SPDT
  • 413NU Integrated electronic timer, adj. 1-60 sec, 12/24VDC, DPST 2A contact
  • 413PNU Integrated pneumatic timer, adj. 1-180 sec. 12/24VDC, SPDT 3A contact
  • 414NU Momentary DPDT
  • 415NU AA (On/Off) DPDT

Features

  • Green & Red button lens included
  • Narrow Width for slim profile frames

Specifications

  • Input: 12 or 24 VAC/DC
  • Dimensions: 4-1/2 inches L x 1-3/4 inches W x 1.5 inches D (114 L x 45 W x 38.1 D mm)

Options

  • 630 Dull Stainless finish standard, Optional Special Order finishes Chrome, Brass, Bronze, Dark Bronze
Also Known As
SZ-412NU, SDC-412NU
Manufacturer
SDC Security
Manufacturer Warranty
2 Year
Model Number
410
Mount
Narrow
Operation Momentary Timer Maintained
Momentary,Built-in Timer,Alternate Action
Power Requirements
24VDC/12VDC
Type
Basic
UPC Code
712905163024
