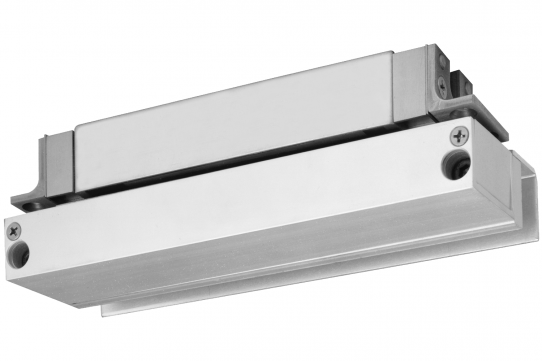

SDC 1562SC Semi-Concealed Shear Lock 2,000lbs holding force

$698.60 $998.00

Overview

The semi-concealed configuration incorporates the innovative 2000 lb Hi/Shear® concealed electromagnetic lock with a surface mounted armature assembly. The semi-concealed design also provides the advantage of mounting the Hi/Shear® on the secure side of the door opening, eliminating potential for tampering.

Features

  • Lateral and Vertical Alignment Adjustment
  • Door Static Sensor
  • Field Adjustable Shear Stops
  • Auto Sensing 12/24VDC Input
  • ANSI/BHMA Grade 1 Conpliant
  • BHMA Certified Holding Force
  • UL, CSFM, MEA Listed

More Info +


Select Model:
Specify Finish (Non-standard finishes may add up to 4 weeks to build time):
Options

Qty

Product Details

The semi-concealed configuration incorporates the innovative 2000 lb Hi/Shear® concealed electromagnetic lock with a surface mounted armature assembly. The semi-concealed design also provides the advantage of mounting the Hi/Shear® on the secure side of the door opening, eliminating potential for tampering.

Models

  • 1562SCV - Semi-concealed mounted to the push side of an out-swing door. The mortise magnet is concealed in the frame and the armature is surface mounted on the door. For metal door and frame, glass door with top rail and metal frame, or wood door and metal frame.  (V) indicates standard aluminum finish
  • 1562SCHDBV - 1/2 Semi-concealed mounted to the push side of an out-swing glass door. The mortise magnet is concealed in the frame and the armature is surface mounted on the 1/2 inch glass door where no top rail is present utilizing the Herculite door bracket.  (V) indicates standard aluminum finish
  • 1562SCHDBV - 3/4 Semi-concealed mounted to the push side of an out-swing glass door. The mortise magnet is concealed in the frame and the armature is surface mounted on the 3/4 inch glass door where no top rail is present utilizing the Herculite door bracket.  (V) indicates standard aluminum finish

Specifications

  • Input Voltage: Dual voltage Sensing 12/24 VDC 350mA @ 24VDC 650mA @ 12VDC
  • Mortise Lock Body Dimensions: 8 inch L x 1-1/2 inch W x 1-1/4 inch D (203.2 x 38.1 x 31.7mm)
  • Surface Armature Assembly Dimensions: 8 inch L x 1-5/8 inch W x 1 inch D (203.2 x 41.2 x 25.4mm)

Options

  • DPS - Door position switch indicates door open or closed. SPDT 0.25amp maximum.
  • L3 - External LED status indicator, mounts separately through the frame and may be used to indicate lock is energized or wired to BAS bond sensor for door status.

Features

  • Lateral and Vertical Alignment Adjustment
  • Door Static Sensor
  • Field Adjustable Shear Stops
  • Auto Sensing 12/24VDC Input
  • ANSI/BHMA Grade 1 Conpliant
  • BHMA Certified Holding Force
  • UL, CSFM, MEA Listed
Also Known As
SZ-1562SCV, SDC-1562SCV, SZ-1562SCHDB3-4, SDC-1562SCHDB3-4, SZ-1562SCHB1-2, SDC-1562SCHB1-2
Finish
Aluminum
Manufacturer
SDC Security
Manufacturer Warranty
Lifetime
Model Number
1562SC
Power Requirements
24VDC/12VDC
Status Monitor
Optional
UPC Code
712905250250
