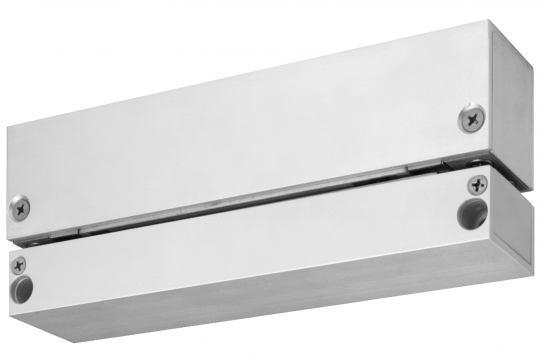

SDC 1561S, 1561TJ Surface Mount Shear Lock. 2,000lbs
$909.30
$1,299.00
Product Overview
Surface mount configurations incorporate the innovative 2000 lb holding force Hi/Shear® electromagnetic lock in a compact housing smaller than many mini surface mount direct pull magnetic locks. The surface mount design also provides the advantage of mounting the Hi/Shear® on the secure side of the door opening, eliminating potential for tampering.
Models
- 1561SV - Surface mount for the push side of the door with integrated electronics. (V) indicates standard aluminum finish
- 1561TJV - Surface top jamb mount for the pull side of the door with integrated electronics. (V) indicates standard aluminum finish
Features
- Lateral and Vertical Alignment Adjustment
- Field Adjustable Shear Stops
- Auto Sensing 12/24VDC Input
- ANSI/BHMA Grade 1 Conpliant
- BHMA Certified Holding Force
- UL, CSFM, MEA Listed
Specifications
- Input Voltage: Dual voltage Sensing 12/24 VDC
- 350mA @ 24VDC
- 650mA @ 12VDC
- Lock Body Dimensions: 8 inch L x 1-3/4 inch W x 1-3/4 inch D
- Armature Assembly Dimensions: 8 inch L x 1-3/4 inch W x 1 inch D
Options
- D - Door Position Status, indicates door open or closed. SPDT 0.25amp maximum.
- B - Bond Alert Status, indicates if lock is locked and secured. SPDT
- L - External LED status indicator, mounts separately through the frame and may be used to indicate lock is energized or wired to BAS bond sensor for door status.
Also Known As:
SZ-1561SV, SDC-1561SV, SZ-1561TJV, SDC-1561TJVFinish:
AluminumManufacturer:
SDC SecurityManufacturer Warranty:
LifetimeModel Number:
1561S/1561TJPower Requirements:
24VDC/12VDCStatus Monitor:
OptionalUPC Code:
712905250502
2 Questions asked on SDC 1561S, 1561TJ Surface Mount Shear Lock. 2,000lbs •
Q
Mark Hitchcock • 01/30/2020, 8:05:42 AM
Is this rated for exterior use.
A
01/30/2020, 4:56:08 PM
No, these are rated for Interior use only. For Exterior applications we would suggest taking a look at the 1570 series Gate Locks.
Q
MAS • 02/21/2023, 4:06:21 PM
Can the KP-300 VANDAL RESIST, WEATHER MULLION PIN/PROX READER be used with this lock?
A
02/21/2023, 4:13:06 PM
Yes, you can use the KP-300 reader to cut power directly to this lock. However, please note that the KP-300 is 12VDC only. For additional help with this item or other PIN/Prox Reader options that would be available please give us a call direct at 1-866-500-5625
