SDC 1565, 1566 Concealed HI/Shear EmLock. 2,700lbs

$663.00 $780.00

Overview

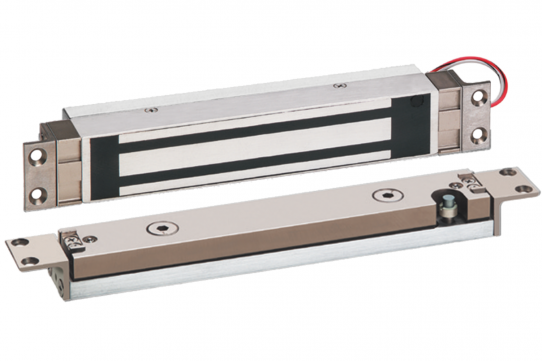

The SDC Hi/Shear® is a totally concealed, high security, failsafe locking mechanism with superior appearance. The patented Hi/Shear® electromagnetic lock design incorporates a “floating” armature assembly and special alloy steel locking “tabs” on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors.

Hi/Shear® magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames and Herculite doors with top rails.

Made in the USA

More Info +


Select Model:
Specify Armature. Armature supplied with lock.:
Options

Qty

Product Details

Hi/Shear® magnetic locks are ideal for use on commercial grade hollow metal and wood doors and frames and Herculite doors with top rails.

Door Static and Alignment Sensor

The door static sensor ensures that the door is at rest and aligned, before the magnet is permitted to energize, eliminating potential for lock misalignment.

Vertical Alignment Adjustment

Vertical adjustment of both the armature and the adjustable delay relock sensor compensates for wide door gaps.

Alloy Steel Shear “Tabs” on Lock and Armature

Alloy shear tabs are used on both the lock and the armature to ensure continued high holding force. There is no profiling of the soft armature steel that may be prone to wear and reduced holding force.

Model

1565ITC (standard) Shearlock, 1-5/8" depth, integrated electronics for 1-3/4" to 2" frames. 2,700lbs holding force
1566ITC (standard) Shearlock, 1-1/4" depth, with external electronics, for 1-1/4" to 1-1/2" frames.  2,700lbs holding force

Specifications

Input Voltage: Dual voltage Sensing 12/24 VDC
400mA @ 24VDC
800mA @ 12VDC

Lock Body Dimensions:
1565:  10-7/16"L x 1-1/2"W x 1-5/8"D (265.1 x 38.1 x 41.3mm)
1566:  10-7/16"L x 1-1/2"W x 1-1/4"D (265.1 x 38.1 x 32mm)

Armature Assembly Dimensions:
11"L x 1-1/2"W x 7/8"D (279.4 x 38.1 x 22.2mm)

Options

HTR - Herculite top rail armature adjustment bracket for leading edge adjustments.
D - Door position switch indicates door open or closed. SPDT 0.25 Amp maximum.
L -3 - External LED status indicator, mounts separately through the frame and may be used to indicate lock is energized or wired to BAS bond sensor for door status.
WDRB - Wood door reinforcement box

Finish
Aluminum
Maglocks.com Rating
Best
Manufacturer
SDC Security
Manufacturer Warranty
Lifetime
Model Number
1565/1566
Power Requirements
24VDC/12VDC
Status Monitor
Optional
