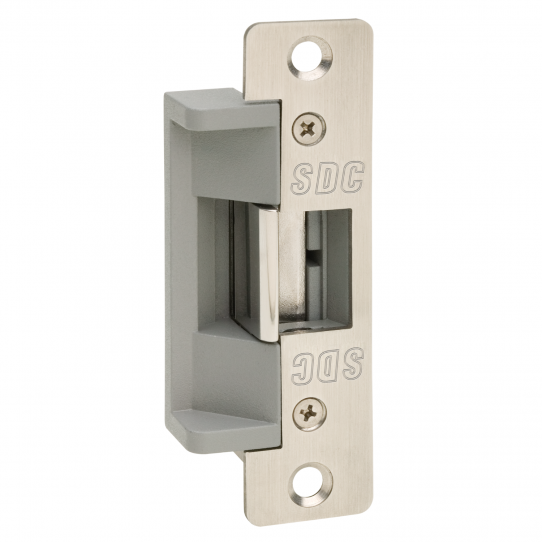

SDC 15 Series Electric Door Strike
$74.90
$107.00
SDC 15 Series Electric Strike
Product Overview
The SDC 15 Series electric strike is designed for use with cylindrical and mortise locksets with up to 15mm throw latchbolt. The compact low profile design with an internally mounted solenoid and factory supplied mounting tabs enable quick and easy installation where jamb space is limited. The quality construction makes the 15 Series ideal for medium to low traffic installations.
Features
- Choice of Failsecure or failsafe operation
- For 5/8 inches latch or 3/4 inches latchbolt with 1/8 inches door gap
- Non-handed, reversible
- 630 Stainless steel standard finish
- ANSI A156.31 compliant
Model
- 15-4 4.875 inches (124mm) faceplate for aluminum, wood and hollow metal frames. Radius corners
Options
- RMB Buzzer 12/24V AC/DC operation
- BR64XL Rectifier for AC operation
Specification
- Input: 200 mA @ 12VDC
- Input: 150 mA @ 24VDC
Dimensions
- 1-1/4 inches W x 4-7/8 inches H x 1-1/2 inches D (31.8W x 124H x 38.1D mm)
Also Known As:
154SU, SZ-154SU, SDC-154SUFor Use With:
Cylindrical Locksets,Mortise Locksets w/o deadboltGrade:
Grade 3Manufacturer:
SDC SecurityManufacturer Warranty:
2 YearModel Number:
15-4Power Requirements:
24VDC/12VDCStatus Monitor:
Not AvailableUPC Code:
712905189659Usage:
Interior Use OnlyDuty Rating:
continuous (dc) / intermittent (ac)Environment:
indoorFire-Rated Code:
noFrame Material:
hollow-metal, wood, aluminumLockset Type:
cylindricalPre-load Capable:
noStrike Fail State:
fail-secureStrike Installation:
mortiseStrike Voltage:
12/24VDC
1 Question asked on SDC 15 Series Electric Door Strike •
Q
Nicl • 11/06/2023, 6:28:10 PM
Hi,
Is this striker lock fine to use for an out door gate?
Regards Nick
A
11/07/2023, 12:21:01 PM
No, the 15-series electric strike is not rated for use in outdoor installations. To better assist with this request, please give us a call at 1-866-500-5625 and we can go over a few Outdoor Rated Electric strike options for your gate.
