AES-30012KIT Compact Electric Strike 12VDC

AES-30012KIT Compact Electric Strike Kit, 12VDC

Product Overview

The flexible, compact AES-300 electric strike offers value and innovation in one compact product. The small body design eliminates the need to cut out the dust box during installation, making this a great option for retrofit applications where size restraints may occur.

Offering up to 1/4 inch horizontal adjustability, the AES-300 is ideal for cylindrical locksets with a latch up to 5/8 inch throw without a deadbolt.

Features

• Static strength: 1000 lbs.
• Dynamic strength: 50 ft. lbs
• Factory tested to 500,000 cycles
• Strike body depth 1-1/2 inch
• For use with cylindrical locksets
• Non-handed - Horizontally adjustable
• Spacers and keeper shims for horizontal adjustment
• Small strike body fits in many competitive cut-outs with no modification to the frame
• Available in fail secure only
• 12VDC/AC

Model

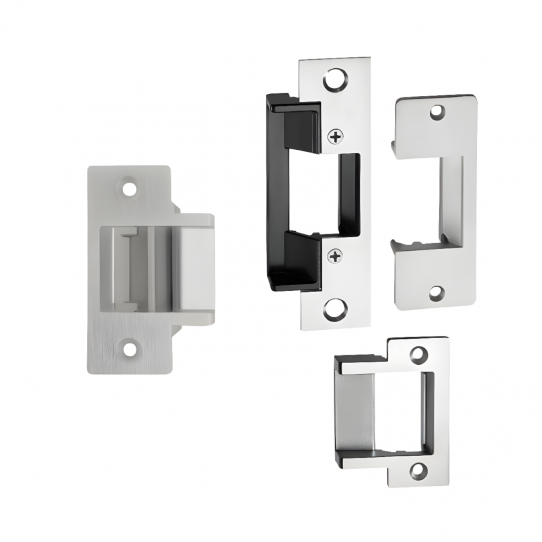

• AES-30012KIT: Strike body and all 3 faceplate options included (ANSI Metal Jamb, Metal Jamb, Wood Jamb), 12V DC/AC model

Specification

• 200mA @ 12V AC/DC
• Strike body depth 1-1/2 inch

Faceplate Dimensions

• ANSI Metal Jamb Faceplate: 4-7/8 inch X 1-1/4 inch round corner faceplate
• Metal Jamb Faceplate: 2-3/4 inch X 1-1/8 inch square corner faceplate
• Wood Jamb Faceplate: 3-1/2 inch x 1-3/8 inch round corner faceplate
