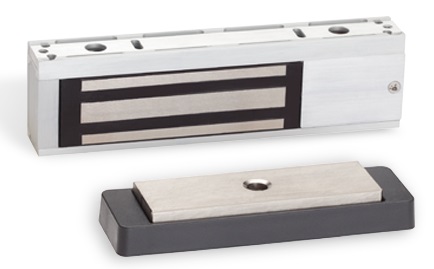

Schlage M450 Electromagnetic Lock, 1000lbs
Processing...

Schlage M450 Electromagnetic Lock, 1000lbs

$496.00 $620.00

Overview

The M400 electromagnetic locks from Schlage are designed with the customer in mind to be robust, easy to install, and secure. The new bayonet mounting feature makes installs easier, allowing the installer to have their hands free during the mounting process. There is no need to consider door handing as all the M400 Series electromagnetic locks are both non-handed and symmetrical, allowing optimum placement of the magnet no matter the application.

Standard Features:
• 1000lbs Holding Force
• Auto voltage selection 12/24VDC
• Bayonet Mount makes installation simpler
UL1034 Burglary-Resistant Electronic Locking Mechanisms, UL10C Positive Pressure Fire Tests of Door Assemblies and ANSI/BHMA A156.23 Grade 1 certifications
• Limited Lifetime Warranty

More Info +


Select Model:
Options

Qty

Product Details

All M400 Series locks have automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex. The M420 is tested and certified to meet or exceed UL1034 and BHMA 1000lb. hold force requirements..

Standard Features

  • 1000lbs Holding Force
  • Auto voltage selection 12/24VDC
  • Bayonet Mount makes installation simpler
  • UL1034 Burglary-Resistant Electronic Locking Mechanisms, UL10C Positive Pressure Fire Tests of Door Assemblies and ANSI/BHMA A156.23 Grade 1 certifications
  • Limited Lifetime Warranty

Model

  • M450 - Standard 1000lbs holding force magnetic lock
  • M450P - Includes Magnetic Bond Sensor (MBS), Door Position Sensor (DPS), Relock Time Delay 0.5 to 30secs(RTD)

Mechanical Specifications

  • Holding Force: 1000lbs
  • Lock: 10-1/4" L x 3" H x 1-3/4" D;

Eletrical Specifications

  • Voltage: 12/24VDC, Automatic voltage sense
  • Current: 750 mA @ 12VDC; 380 mA @ 24VDC
Finish
Aluminum
Maglocks.com Rating
Best
Manufacturer
Schlage
Manufacturer Warranty
Lifetime
Model Number
M450
Power Requirements
24VDC/12VDC
Status Monitor
Optional
