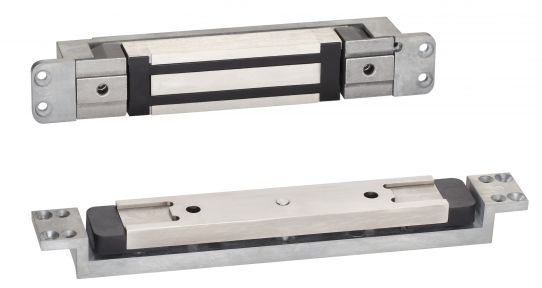

Schlage GF3000 Mortise Mounted Shear Lock, 3000lbs

The GF3000 shear lock is ideally suited for commercial grade quality hollow metal doors and frames, as well as herculite doors with top rail. Advances in design provide low operating temperatures, making this shear lock suitable for use in the growing demand for concealed locks in wood frames.

The mortise shear lock offers the advantage of a totally concealed locking mechanism, providing superior security and appearance. The patented design incorporates locking on the magnet assembly with mating grooves in the armature plate. The flexible mounting features allows for normal door and frame movement.

Standard Features

• 3000lbs Holding Force
• Automated voltage selection 12/24VDC
• Requires filtered, regulated power supply
• Built-in automatic relock switch
• Adjustable time delay on relock, 0-30 seconds
• Low Temperature Operation
• Microprocessor controlled
• Optional Magnetic Bond Sensor (MBS) to monitor the secure/not secure condition of the lock
• Optional Door Status Monitor (DSM) to sense the open/closed position of the door
• UL 10C Positive pressure fire tests of door assemblies, cUL, CSFM, and MEA listed to use on fire labeled openings
• Meets ANSI/BHMA A156.23 standards

Model

• GF3000 - Adjustable from top edge of door
• GF3000TRD - Mounting assembly which provides armature adjustable from the latch edge of the door. Recommended with zero clearance condition between top of door and ceiling.
• GF3000BRD - Mounting assembly to mortise armature into bottom rail of door. Magnet is installed in floor/threshold. Provides solution when no top rail is available.

Mechanical Specifications

• Holding Force: 3000lbs
• Lock: 9 1/2 inch L x 1 1/2 inch H x 1-1/2 inch D

Electrical Specifications

• Voltage: 12/24VDC
• Current: .90amp @ 12VDC; .45amp @ 24VDC

Specifications

• Model: GF3000 Mortise Mounted Shear Lock
• Manufacturer: Schlage
• Holding Force: 3000 lbs
• Voltage: 12 VDC or 24 VDC (automatic voltage selection)
• Current Draw: 0.90 A at 12 VDC; 0.45 A at 24 VDC
• Lock Size: 9-1/2 inches L x 1-1/2 inches H x 1-1/2 inches D
• Relock Time Delay: Adjustable, 0 to 30 seconds
• Built-in Features: Automatic relock switch; microprocessor controlled
• Power Supply: Filtered, regulated power supply required
• Options: Magnetic bond sensor (MBS); door status monitor (DSM)
• Mounting: Mortise; top edge adjustable (GF3000TRD adjusts from latch edge; GF3000BRD for bottom rail)
• Listing: UL 10C; cUL; CSFM; MEA; meets ANSI/BHMA A156.23
• Warranty: Lifetime
