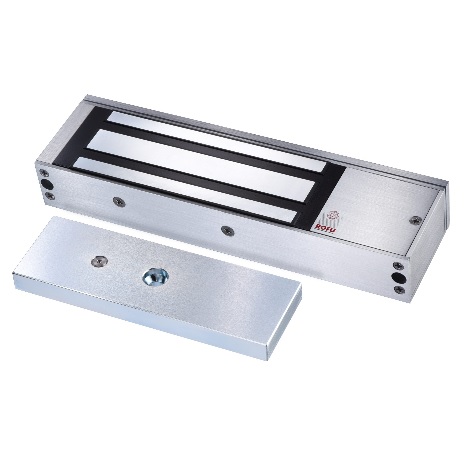

ROFU, 8512-LC Magnetic Lock, 1200lbs Holding Force

PRODUCT OVERVIEW

The 8500 Series Electromagnets replace 8011 Series while offering the same functionality.

All of the magnets in the range are 12/24 VDC selectable, fail-safe, suitable for indoor use, featuring anti-residual magnetism design and keyhole mounting for ease of installation.

STANDARD FEATURES

• Easy installation with keyhole mounting slides left to right
• Dual voltage 12/24 VDC field selectable
• Built-in MOV spike and surge protection
• No residual magnetism
• Fail alarm: may be released upon activation of fire alarm
• Housing: attractive, heavy duty anodized extruded aluminum housing

TECHNICAL SPECIFICATIONS

• Holding Force: 1200lbs
• Voltage: 12/24 VDC
• Current: 500 mA/12 VDC, 250 mA/24 VDC
• Dimensions:
  • Magnet: 10-1/2 inches L x 2-11/16 inches H x 1-9/16 inches D
  • Armature: 7-1/4 inches L x 2-3/8 inches H x 5/8 inches D

Model

• 8512-LC - Magnetic Lock, 1200lbs Holding Force, keyhole mounting, Aluminum housing

Options

• 21031 - Z-Bracket Kit, required to install maglock on inswing doors (sold separately)

Specifications

• Model: 8512-LC Magnetic Lock
• Manufacturer: ROFU
• Holding Force: 1200 lbs
• Voltage: 12 VDC or 24 VDC (field selectable)
• Current Draw: 500 mA at 12 VDC; 250 mA at 24 VDC
• Magnet Size: 10-1/2 inches L x 2-11/16 inches H x 1-9/16 inches D
• Armature Size: 7-1/4 inches L x 2-3/8 inches H x 5/8 inch D
• Fail Mode: Fail safe
• Mounting: Keyhole mounting; 21031 Z-Bracket Kit (sold separately) required for inswing doors
• Housing: Heavy duty anodized extruded aluminum
• Use: Interior use
• Protection: Built-in MOV spike and surge protection; no residual magnetism
