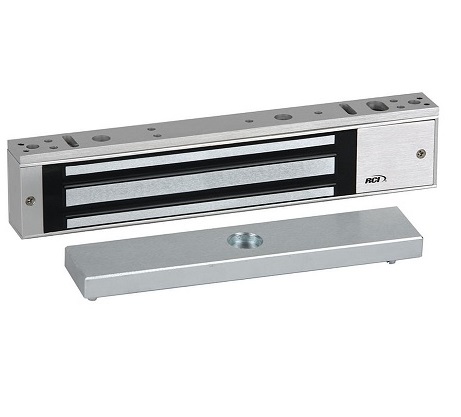

RCI 8371 Surface MiniMags, 750lbs Holding Force
$434.70
$483.00
Product Overview
The Surface MiniMag® locks are designed with a 1-7/8 inch width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.
Standard Features
- 750lbs max holding force
- Field selectable voltage - 12/24VDC
- MOV surge protection
- No residual magnetism
- Low energy consumption
- Hardened steel armature nut
- UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour
- CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up to 1-hour
- California State Fire Marshal Listed (CSFM: 3774-2127:0100)
- UL 294 Special Locking Arrangement Component (6th Edition)
Product Specifications
- Adjustable keyhole mounting
- Convenient plug-in wiring terminals
- Easy access wiring cavity
- Encapsulated 4-bolt 'Drop-Stop" mounting
- Self-drilling tek™ fasteners
- Dimensions:
- Magnet: 9-3/8 inches W x 1-7/8 inches H x 1 inches D
- Armature Plate: 7-1/4 inches W x 1-1/2 inches H x 1/2 inches D
Product Finish
- US28 - Brushed Anodized Aluminum
- US40 - Brushed Adonized Dark Bronze
Product Options
- DSS - Door Status Sensor
- SCS - Security Condition Sensor with LED
- DSS/SCS - Door Status Sensor & Security Condition Sensor Combination with LED
Models
- 8371-28 (Standard unit, US28 Satin Aluminum Finish )
- 8371-40 (Standard unit, US40 Dark Bronze Finish)
- 8371-DSS-28 ( Door Status Switch, US28 Satin Aluminum)
- 8371-DSS-40 ( Door Status Switch, US40 Dark Bronze Finish)
- 8371-SCS-28 (Bond Status, US28 Satin Aluminum Finish)
- 8371-SCS-40 (Bond Status, US40 Dark Bronze Finish)
- 8371-DSS/SCS-28 (Door Status Switch, Bond Status, US28 Satin Aluminum Finish)
- 8371-DSS/SCS-40 (Door Status Switch, Bond Status, US40 Dark Bronze Finish)
Warranty
Lifetime Warranty
Specifications
- Model: 8371 Surface MiniMag
- Manufacturer: RCI
- Holding Force: 750 lbs maximum
- Voltage: 12 VDC or 24 VDC (field selectable)
- Magnet Size: 9-3/8 inches W x 1-7/8 inches H x 1 inch D
- Armature Plate Size: 7-1/4 inches W x 1-1/2 inches H x 1/2 inch D
- Finish: US28 brushed anodized aluminum; US40 brushed anodized dark bronze
- Options: DSS door status sensor; SCS security condition sensor with LED; DSS/SCS combination
- Mounting: Adjustable keyhole mounting; 4-bolt Drop-Stop mounting
- Protection: MOV surge protection; no residual magnetism
- Listing: UL 10C auxiliary locks (fire doors rated up to 1 hour); CAN/ULC S104; UL 294 special locking arrangement component (6th edition); California State Fire Marshal 3774-2127:0100
- Warranty: Lifetime
