Magloc880 880lb Wireless Release Maglock Kit

$360.92

Overview

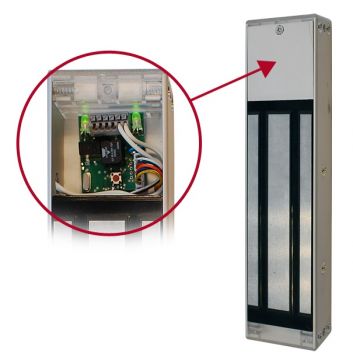

The Transmitter Solutions Magloc880 is a 880lb maglock with a built in 433MHz receiver and comes standard with a bond status sensor. This maglock is great for a buzz-in system set up. The receiver has a range of up to 500'. Holds up to 10 transmitters.

Kit Includes:

Magloc880
2-Button Monarch Transmitter
TS-2 Exit Button
PS12-2 Power Supply
Complete wiring diagram and 100% free over the phone tech support!!

Product Overview

Great for after hours control of your business this easy to install magnetic lock kit keeps trouble out but allows you to remotely "buzz-in" customers as needed.

Installation of this kit does not alter your current locks and the kit can be removed at any time.

Standard Features

880lbs of Holding Force
Armature Plate and install hardware included
Long Lasting Performance
Kit includes (1) Wireless release remote

Technical Specifications

Maglock Size: 10 inch L x 1.96 inch W x 1.06 inch D
Armature Size: 7.28 inch L x 1.77 inch W x 0.47 inch D
12VDC Operation
Current Draw: 550mA
Weight: 5.4lbs

Finishes

Stainless Steel

Kit Includes:

Magloc880
2-Button Monarch Transmitter
TS-2 Exit Button
PS12-2 Power Supply
Complete wiring diagram and 100% free over the phone tech support!!

Also Known As

Magloc880-Wireless-Kit, Wireless maglock kit, wireless magnetic lock kit

Finish

Aluminum

Manufacturer

Transmitter Solutions

Manufacturer Warranty

2 Year

Model Number

Magloc880 kit

Power Requirements

12VDC

Status Monitor

Standard

Datasheet PDF

Riser Diagram

Wiring Diagram - PS12-2 Power Supply
Wiring Diagram - MC-1 Power Supply w/backup battery

2 Questions asked on Magloc880 880lb Wireless Release Maglock Kit • Ask a Question

Q Jason Oechsle • 12/02/2019, 3:39:41 PM Can you wire a second REX button to the system?

A 12/03/2019, 1:54:34 PM Yes, you can wire an additional exit button to this kit (see part# TS-2). You can also add an under-desk mount button for remote release (see part# HUB)

Q Mike Salmon • 05/24/2021, 5:31:18 PM If I understand the operation correctly, you can set it up so the lock STAYS de-energized until you push the button and then the lock STAYS locked as long as there is power available?

A 05/25/2021, 1:20:14 PM When the system is powered the maglock would remain in the "locked" position. Pressing the wireless remote would unlock the maglock for a few seconds to allow entry. To de-energize the maglock permanently you would have to cut power to the power supply. For further assistance with this kit please give us a call at 1-866-500-5625
