Single Door Remote Buzz-In Kit with Magnetic Lock
Processing...

Single Door Remote Buzz-In Kit with Magnetic Lock

$459.69

Overview

Single Office Door Remote Release Buzz-In kit with magnetic lock.

For doors with flip up deadbolts/hooks, all glass storefront doors with aluminum frames or situations where modification to the door jamb is not permitted this magnetic lock package allows you to "add" a magnetic lock to the top of your door without having to remove your existing mechancial locks. *existing mechncial locks to be kept "unlocked"

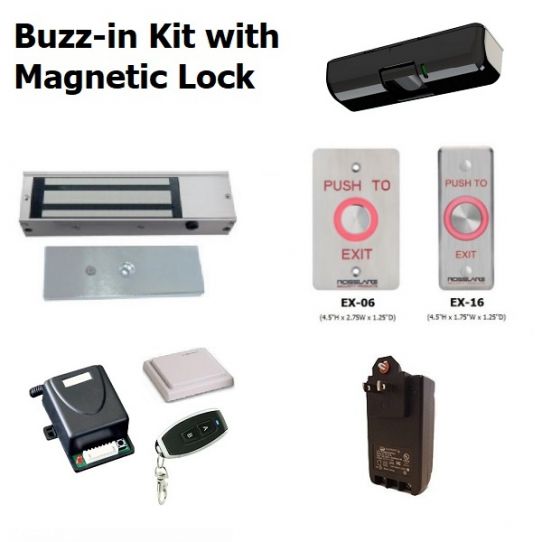

Kit Includes:

  • Maglock (select)
  • Exit Button (select)
  • PS520W motion sensor
  • WRT-2 wireless receiver/transmitter package
  • PS12-2 plug-in power supply

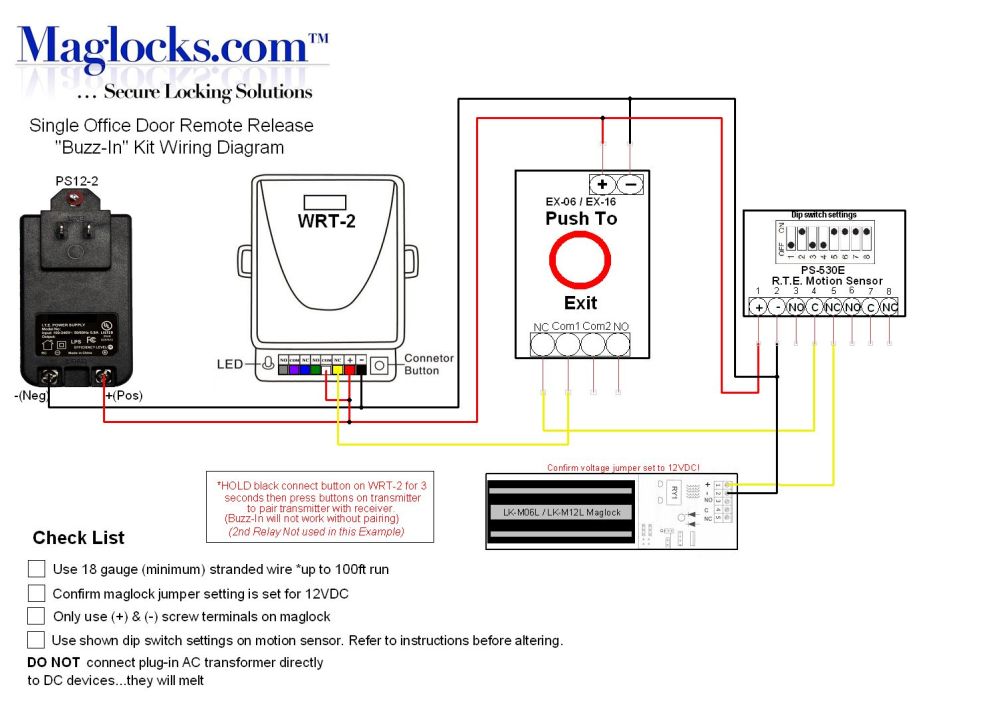

  • Complete Wiring Diagram!

If you have any questions regarding which kit will be best for your project please contact us Toll Free at 1-866-500-5625

More Info +


Select Locking Device:
Select Exit Button:
Select Wire Length:

Qty

Product Details

Product Overview

This hard-wired magnetic lock kit can be added to an existing office door for the purpose of managing traffic into your business.

When power to the system is turned on, the magnetic lock will engage, preventing customers from being able to enter.

Using the wireless transmitters (2 transmitters included with kit), pressing the button will cut power to the magnetic lock for a few seconds allowing customer entry. After the few seconds has expired the maglock will automatically return to the normal "locked" position.

For life saftey purposes, a Request-to-Exit Motion Sensor & Push-to-Exit button is included with this package. Upon exit, the motion sensor will detect a person at roughly 2ft away and will cut power to the maglock, allowing exit. The Push-to-Exit button will also allow exit and should be mounted near the door, this button will serve as a backup should the motion sensor fail.

The system can be fully disarmed when power is cut to the plug-in power supply.

*always check with your local Fire Marshal to confirm building/fire codes in your area BEFORE purchase or installation.

Features

Remotely unlock the magnetic lock with the wireless transmitters to allow for traffic control into your business.

Additional wireless transmitters can be purchased separately (up to 28 in total). See "Related Products" below to add additional WT series transmitters.

Specifications

PS12-2 Plug-in power supply: 12VDC, 2AMP output

Office Kit Includes

  • Magnetic lock (select maglock above)
  • Exit button (select button above)
  • PS520W Request To Exit Motion Sensor
  • WRT-2 Wireless Receiver/Transmitter package
  • PS12-2 plug-in style power supply
  • Complete Wire Diagram Included!

If you have any questions regarding which kit will be best for your project please contact us Toll Free at 1-866-500-5625

Also Known As
Office maglock kit, Office door magnetic lock kit, Office door Electromagnetic lock kit
Manufacturer
Maglocks.com
Manufacturer Warranty
2 Year
Model Number
office kit with maglock
Power Requirements
12VDC
3 Questions asked on Single Door Remote Buzz-In Kit with Magnetic Lock



Q Angela • 03/10/2020, 1:53:47 AM I need help with specifics on ordering lock for door
A 03/10/2020, 10:39:00 AM If you need help selecting a kit or would like us to work up a complete system Estimate, please take a few photos of your door and send them to sales@maglocks.com. You can also reach us by phone to go over any project questions, 1-866-500-5625
Q Mike • 07/09/2020, 3:05:34 PM What doe the "SDC 350V for outswing glass and aluminum storefront doors" option consist of?
A 07/10/2020, 2:22:47 PM The 350V option will include a slim-line 1200lb holding force magnetic lock instead of a conventional 1200lb lock. This slim-line design is recommended for use on Aluminum Storefront style doors where the top rail of the door is limited on space due to the glass below. To see more on the 350V maglock, use this link: https://www.maglocks.com/sdc-350-narrow-line-single-emlock-1200lbs.html or give us a call and we would be happy to help 1-866-500-5625
