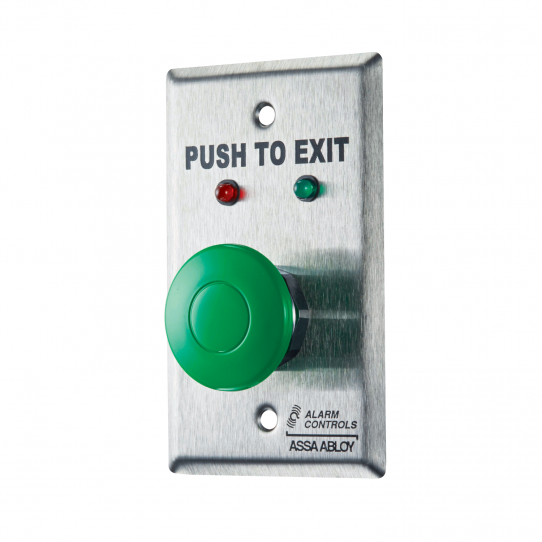

TS-1 Mushroom Push To Exit Button with Red and Green LEDs

Specifications

The TS-1 single gang request to exit station with push button and LEDs provides a convenient way to monitor the lock station.

LED status indicators provide an at-a-glance visual of system status.

• Button: 1-1/2 inch green mushroom, labeled PUSH TO EXIT
• Action: Momentary
• Contacts: One normally-open and one normally-closed
• Contact Rating: 10 A @ 35 VDC or 120 VAC
• LEDs: Red and green, operate on 12 or 24 VDC, independently wired
• Wall Plate: Single gang stainless steel
• Terminals: Screw terminals
• Switch Depth: 2 inch behind plate
• Temperature Range: -25°C to +70°C
• Listings: UL approved and CSA certified components
• Options: Other finishes and other contact combinations available
