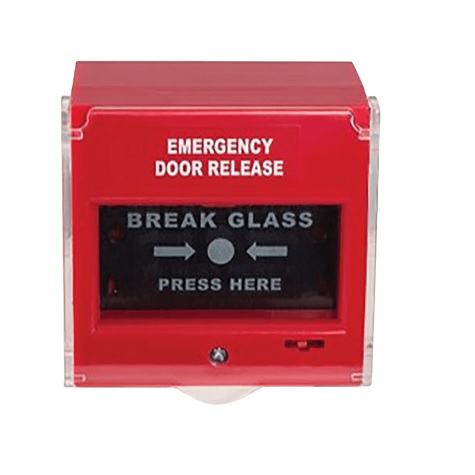

Locknetics, EGB-100-R Emergency Door Release Station, Red

PRODUCT OVERVIEW

Locknetics, EGB-100-R Emergency Door Release Station, Red

The resettable EGB Series are call points that can be activated without a power supply during emergencies. They are typically located on fire escape doors.

The main function is to override an electrical locking device in case of emergency. A provided key allows the unit to be reset to normal mode.

FEATURES

• 12/24 VDC, DPDT switch contacts rated @ 5A/125VAC
• Detachable terminal block for easy installation
• Built-in 80db buzzer
• Blue backlight
• Non-glass, durable plastic unit, making it suitable for high traffic areas
• Resettable key included and available to order as a replacement part (EGB-KEY)

MODEL

• EGB-100-R Resettable emergency call point station with Red case; Includes bue backlight, built-in buzzer and DPDT switch

SPECIFICATION

• DPDT switch contacts, 5A/125VAC
