Locknetics, EGB-100-G Emergency Door Release Station, Green
$135.20
$169.00
PRODUCT OVERVIEW

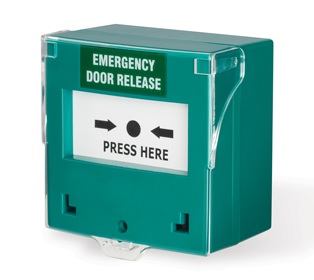

Locknetics, EGB-100-G Emergency Door Release Station, Green
The resettable EGB Series are call points that can be activated without a power supply during emergencies. They are typically located on fire escape doors.
The main function is to override an electrical locking device in case of emergency. A provided key allows the unit to be reset to normal mode.
FEATURES
- 12/24 VDC, DPDT switch contacts rated @ 5A/125VAC
- Detachable terminal block for easy installation
- Built-in 80db buzzer
- Blue backlight
- Non-glass, durable plastic unit, making it suitable for high traffic areas
- Resettable key included and available to order as a replacement part (EGB-KEY)
MODEL
- Resettable emergency call point station with Green case; Includes blue backlight, built-in buzzer and DPDT switch
Specifications
- Model: EGB-100-G Emergency Door Release Station (Green)
- Manufacturer: Locknetics
- Voltage: 12 VDC or 24 VDC
- Switch Contacts: DPDT, 5 A at 125 VAC
- Buzzer: Built-in, 80 dB
- Backlight: Blue
- Construction: Non-glass, durable plastic
- Terminals: Detachable terminal block
- Reset: Resettable with included key (replacement key EGB-KEY)
- Operation: Resettable call point; activates without a power supply
