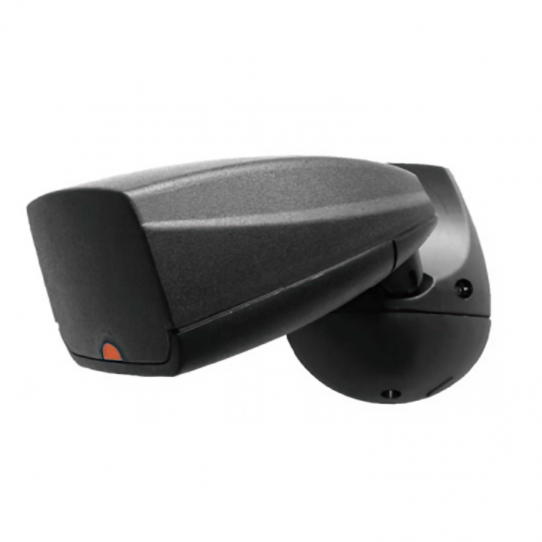

HAWK 2 Industrial Door Sensor, IP 65 **DISCONTINUED**

Product Overview

The HAWK 2 Industrial Door Sensor, IP 65. The HAWK 2 is a planar technology microwave detector working in the K band. It is the ideal solution for operating all types of fast doors and industrial gates. It detects the movement of people and vehicles in the monitored area. With an appealing style, it can also be used for operating automatic doors.

The HAWK 2 utilizes K-band microwave technology to detect people and vehicles from an overhead position. It provides wide coverage and high resolution to activate all types of automatic doors and industrial gates.

The HAWK 2 is easily installed at a height up to 20 feet (6 meters). With its versatile mechanical orientation, the HAWK 2 ensures accurate positioning to the required coverage area. The detection sensitivity and direction of movement (approaching, leaving or both) are programmed by DIP switch settings.

Standard Features

• Planar technology in K band
• Programmable functions
• Directional sensitivity, toward, away, both
• High coverage area resolution
• Easy installation and adjustment
• Degree of protection IP 65

Technical Specifications

• Operating frequency: 24.150 GHz
• Output power (EIRP): <20dBm
• Detectable speed: 0.1 m/s min.
• Vertical directionality: 0...60°
• Horizontal directionality: +/- 45°
• Installation height: Max 6 m
• Range: 1...10 m adjustable
• Relay control time: 1..6 sec. adjustable
• Relay output configuration: Form C (SPDT)
• Relay contact rating: 1A @ 24V AC/DC
• Detection indicator: Red LED
• Operation temperature: -4° F to 122° F (-20° C to 50° C)
• Supply voltage: 12...24 VDC/VAC
• Operating current: Max 40mA
• Dimensions: 6.3" (160mm) x 3.8 inches (95mm) x 4.4 inches (110mm)
• Weight: 1.0lbs. (450g)
• Housing: ABS (plastic)
• Connection: 6.5 feet (2m) cable
• Mechanical protection: IP 65

Finishes

• Black
