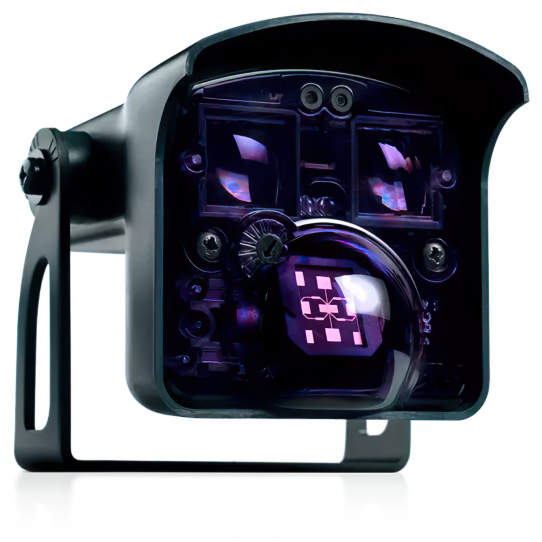

BEA, IS40 Motion and Presence Sensor for Industrial Doors, IP65

Description

BEA IS40 / IS40XL are dual technology sensors designed to provide motion and presence detection in industrial applications. The standard IS40 can be mounted from 8 feet to 16 feet to fit any industrial application. For lower mounting heights, BEA IS40XL can be mounted from 6-1/2 feet to 11-1/2 feet. Housed in a rugged IP65 rated enclosure, the IS40 / IS40XL will operate in harsh environments, capable of withstanding damage caused by wind-blown dust and rain and hose-directed water.

Technical Specifications

• Supply Voltage: 12V to 24V AC ±10%; 12V to 24V DC +10% / -3%
• Sensor Technology: Microwave Doppler Radar | Active Infrared
• Detection Mode: Motion | Presence
• LED Signal: Green (activation relay) | Red (presence relay)
• Transmitter Frequency: 24.150 GHz | 875 nm
• Transmitter power density: < 5 mW/cm² | < 250 mW/ m²
• Cable Length: 32ft
• Mounting height:
• 10IS40: from 8 to 16 feet
• 10IS40XL: from 6-1/2 to 11-1/2 feet
• Degree of Protection: NEMA 4/ IP65
• Temperature range: -22° F to +140° F

Models

• 10IS40: Motion & Presence sensor, Standard Mounting Height, 8 to 16 feet
• 10IS40XL: Motion & Presence sensor, Extra-low Mounting Height, 6-1/2 to 11-1/2 feet

Specifications

• Model: 10IS40 and 10IS40XL Motion and Presence Sensors
• Manufacturer: BEA
• Sensor Technology: Microwave Doppler radar (24.150 GHz) and active infrared (875 nm)
• Detection Mode: Motion and presence
• Voltage: 12 V to 24 V AC +/-10%; 12 V to 24 V DC +10% / -3%
• Mounting Height: 10IS40 8 feet to 16 feet; 10IS40XL 6-1/2 feet to 11-1/2 feet
• LED Signal: Green (activation relay); red (presence relay)
• Cable Length: 32 feet
• Operating Temperature: -22° F to +140° F
• Protection: IP65; NEMA 4
• Mount: Surface mount
• Use: Commercial doors, loading docks, warehousing, toll gates, parking; weather resistant
