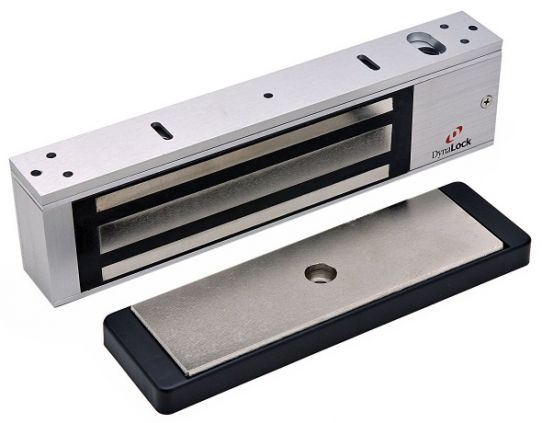

DynaLock, 2011 Single Electromagnetic Lock, 1200lbs

Product Overview

The 2000 Series is a full size 1200 lbs. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. Specify for commercial, industrial, or institutional openings when low cost and high security are required.

Standard Features

• 1200lbs of Holding Force
• Armature Plate and install hardware included
• Silent Operation
• Long Lasting Performance
• 12/24 VAC/VDC operation
• Narrow backset of 1-1/2 inches
• Built-in spike suppression
• Made in the USA
• Lifetime Warranty

Technical Specifications

• Magnet Size: 11 inches L x 2-3/4 inches H x 1-1/2 inches D
• Armature Size: 7-3/8 inches L x 2-3/8 inches H x 1/2 inches D
• Current Draw: 420mA @ 12VDC, 210mA @ 24VDC
• Weight: 9lbs

Models

• 2011 - 2011-US28 Single Electromagnetic Lock Outswing
• 2011TJ20 - 2011TJ20-US28 Single Electromagnetic Lock Inswing

Finishes

• US28 Satin Aluminum with clear anodize
