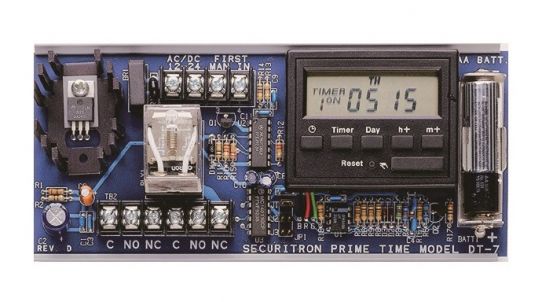

DT-7 Prime Time Digital Timer

Product Overview

Control doors equipped with electrified hardware - with or without access control - with The DT7 digital timer. The DT-7 can be used as a stand-alone unit, or in conjunction with DK and other products. Versatile programming supports timed unlocked/locked/or access- control-only states to turn electric locks or other security systems on and off at programmed times.

Standard Features

• 7-day digital timer
• 10A DPDT relay can be operated in toggle or pulse mode
• 12 programmed on/off times
• "First Man In" feature delays preset action until first access
• Supports holiday programming
• 12 or 24VAC or VDC
• AA battery provides backup to the display module program memory (battery not included)
• MagnaCare® lifetime replacement, no fault warranty

Specifications

• Model: DT-7
• Also known as: SEC100DT7, DT7, SN-DT7, HES-DT7
• Manufacturer: Securitron
• Type: 7-day digital timer
• Programmed times: 12 on/off times
• Relay: 10 A DPDT, toggle or pulse mode
• Operating voltage: 12 or 24 VAC or VDC
• Current draw: 170 mA at 12 V or 24 V
• Operating temperature: 32°F to 113°F (0°C to 45°C)
• Memory backup: AA battery for display module (not included)
• Features: First Man In, holiday programming
• UPC: 784607020639
• Warranty: Lifetime (MagnaCare)
