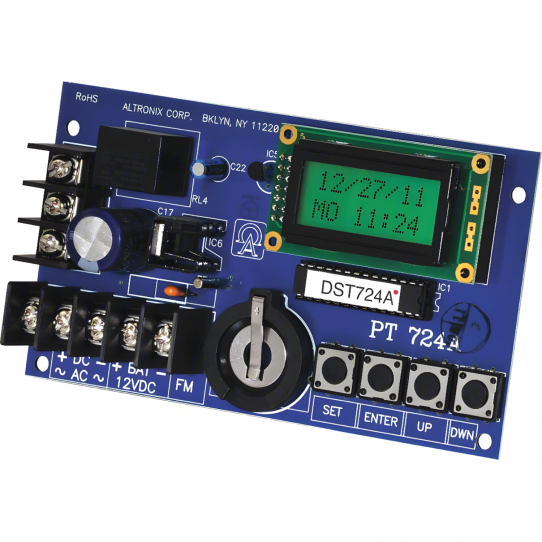

Altronix PT724A 365 Day 24 Hr. Annual Event Timer Board
$130.70
$163.38
Product Overview
PT724A is an extremely versatile 24 Hour 365 Day Event Timers designed to support a wide range of applications: Home and Building Automation, Security, Access Control, Lighting Control, Etc.The PT724A are equipped with an independently controlled form "C" relay contact that provides many latching and/or momentary operations during a program schedule of your choice. Events may be set for single or multiple operations on a daily and/or weekly schedule.
Features and Specifications
- 12VDC or 24VDC selectable operation.
- Form "C" relay contacts are rated 10amp @120VAC/28VDC.
- Standby current: 10mA (relay off) 50mA (relay on).
- EE Prom memory protects against loss of programming due to power failure.
- Accurate crystal controlled clock.
- Momentary and/or Latching Events.
- 50 individually programmed daily/weekly events.
- Block programming capacity can accommodate a total of 350 events per week.
- 10 programmable Holiday dates.
- "First man in" option.
- Standard or Daylight Savings Time settings.
- Automatic compensation for leap year.
- Alphanumeric LCD display simplifies programming.
- Built-in charger for 12VDC sealed lead acid or gel type batteries (Max charge current 100mA).
- Operating temperature: -20 ° C to 49 ° C ambient.
- Lifetime Warranty.
Dimensions
- Dimensions (approximate): 5.25 inch W x 3 inch L x 1 inch H (133.35mm W x 76.2mm L x 25.4mm H)
Specifications
- Model: PT724A
- Also known as: AX-PT724A, ALT-PT724A, ALT100PY724A
- Manufacturer: Altronix
- Type: 24-hour, 365-day annual event timer board
- Operating voltage: 12 VDC or 24 VDC (selectable)
- Relay: Form C, 10 A at 120 VAC / 28 VDC
- Standby current: 10 mA relay off; 50 mA relay on
- Events: 50 individually programmed daily/weekly events; 350 events per week with block programming
- Holidays: 10 programmable dates
- Battery charger: Built-in for 12 VDC sealed lead acid or gel; max charge current 100 mA
- Operating temperature: -20°C to 49°C ambient (-4°F to 120°F)
- Dimensions: 5.25 inches W x 3 inches L x 1 inch H (133.35 mm x 76.2 mm x 25.4 mm) (approximate)
- UPC: 782239932351
- Warranty: Lifetime
Also Known As:
AX-PT724A, ALT-PT724A, ALT100PY724AManufacturer:
AltronixManufacturer Warranty:
LifetimeModel Number:
PT724APower Requirements:
24V/12V AC/DCUPC Code:
782239932351
1 Question asked on Altronix PT724A 365 Day 24 Hr. Annual Event Timer Board •
Q
Raul Barbosa • 11/29/2024, 10:41:19 AM
will this equipment control the Electromagnetic door holders? I'm looking for something that wiill release my elevator lobby doors to a close position every day at 5pm.
A
12/02/2024, 2:51:26 PM
Yes, you could use this device to cut/sent power to an electronic device like Electromagnetic Door Holders. To discuss this project in further detail or to work up a custom Estimate, please give us a call direct at 1-866-500-5625
