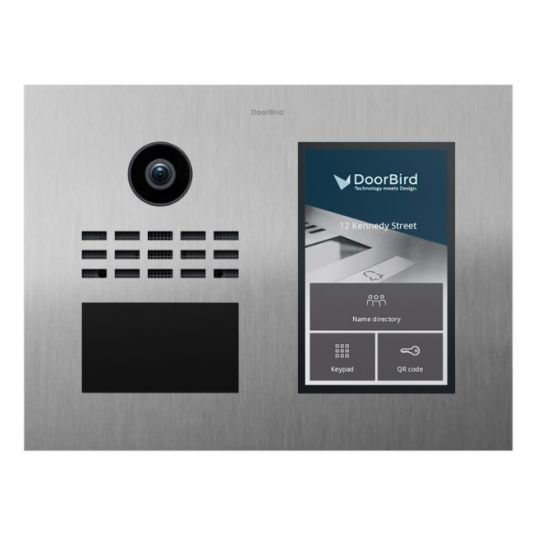

DoorBird, D31TDH Multi-Tenant Video Intercom Door Station, Touch Display, Horizontal

Product Overview

The D31TDH door station by DoorBird sets new standards in terms of modern design, functionality and usability.

It has an ultra-bright 7 inch touch display that is easy to read even in direct sunlight and can be operated by visitors even in bad weather such as rain and snow. The speed of the display when scrolling, searching or operating the resident directory with up to 1000 entries is also unparalleled in the industry.

Designed for multi-tenant buildings, this door station features innovative functions such as Integrated RFID & QR code reader, Virtual Keypad, 4D motion sensor, Video Intercom direct to tenant smartphones and all features are fully configurable remotely via an app, web browser.

Standard Features

• 7 inch Touch Display Module
• Illuminated, name directory (max. 1000 entries)
• Virtual Keypad Module, individual PIN codes
• Integrated 13.56 MHZ RFID, Bluetooth and QR code reader
• Sony Stavis image sensor with FullHD
• 4d motion sensor
• Two, Dry Contact Relays for Door Release, Remote Chime, Doorbell or Opener
• Remote configurability via app, web browser
• iOS/Android App available on marketplace

Video

• Camera: HDTV 1080p, dynamic (VGA - HDTV)
• Lens: High-end ultra wide-angle hemispheric lens
• Night vision: Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)

* Remote door unlock feature will require activation of an electronic lock (sold separately). Contact us at 1-866-500-5625 for help setting up a complete system quote.

Specifications

• Model: D31TDH
• Manufacturer: DoorBird
• Type: Multi-tenant IP video intercom door station with 7 inch touch display (horizontal)
• Display: 7 inch touch display; illuminated name directory up to 1,000 entries
• Access: Integrated 13.56 MHz RFID, Bluetooth and QR code reader; virtual keypad with individual PIN codes
• Video: HDTV 1080p; ultra wide-angle hemispheric lens; night vision with infrared LEDs (850 nm); 4D motion sensor
• Relays: 2 dry contact relays
• Power: 15 VDC plug-in transformer (110-240 VAC) or PoE+ (802.3at)
• Dimensions: 9.34 inches H x 12.41 inches W x 1.92 inches D
• Operating temperature: -13°F to 131°F (-25°C to 55°C)
• Humidity: 10% to 85% RH (non-condensing)
• Environmental rating: IP65, weatherproof
• Mounting: Requires flush or surface mount box (sold separately)
• Finish: Stainless steel V2A, brushed
• UPC: 4251489601011
• Warranty: 2 Year
