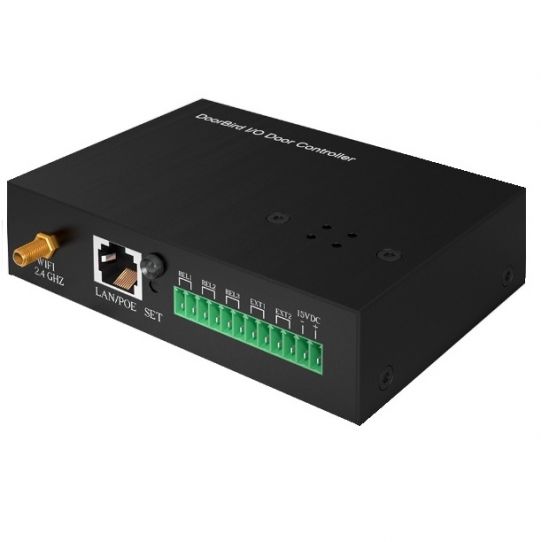

DoorBird, A1081 IP I/O Door Controller
$437.00
Product Overview
The A1081 DoorBird I/O Door Controller offers tamperproof control of up to three doors or gates over a network. Configurable through the DoorBird Phone App!
It can be installed in a protected interior area, such as a control cabinet in the basement and can be connected to the DoorBird IP video door station via the network.
Provides extra security to systems currently using a DoorBird IP Video Station or DoorBird IP Access Control Device.
Standard Features
- Tamperproof control of up to three doors or gates
- Monitoring of two external sensors
- Ability to trigger relays directly through the phone App
- WiFi 802.11b/g/n 2.4GHz, TCP/IP Ethernet Ready
- 3 x Bistable Dry Relays, individually configurable through the DoorBird App
- PoE-A 802.3af Mode-A, 10/100Base-T
- iOS/Android App available on marketplace
Technical Specifications
- 15VDC Plug-In Transformer (connects to 110-240VAC) or PoE 802.3af Mode-A
- Dimensions: 4.8 inch x 3.39 inch x 1.26 inch (H x W x D)
- Operating Temp: -23° F to +131° F / -5° C to +55° C
- Humidity 10 to 85% RH (non condensing)
- Indoor Use Only
Finishes
- Black
*Note, This product MUST be used in conjunction with either a DoorBird IP Video Station or DoorBird Access Control Station (sold separately). Contact us at 1-866-500-5625 for help setting up a complete system quote.
Specifications
- Model: A1081
- Also known as: DoorBird A1081
- Manufacturer: DoorBird
- Type: IP I/O door controller
- Outputs: 3 bistable dry relays (permanently open, permanently closed, toggle), individually configurable
- Inputs: Monitoring of two external sensors
- Use: Must be used with a DoorBird IP video station or IP access control device (sold separately)
- Network: WiFi 802.11b/g/n 2.4 GHz; Ethernet 10/100Base-T; PoE 802.3af Mode-A
- Power: 15 VDC plug-in transformer (110-240 VAC) or PoE 802.3af Mode-A
- Dimensions: 4.8 inches H x 3.39 inches W x 1.26 inches D
- Operating temperature: -23°F to 131°F (-5°C to 55°C)
- Humidity: 10% to 85% RH (non-condensing)
- Usage: Interior use only
- Finish: Black
