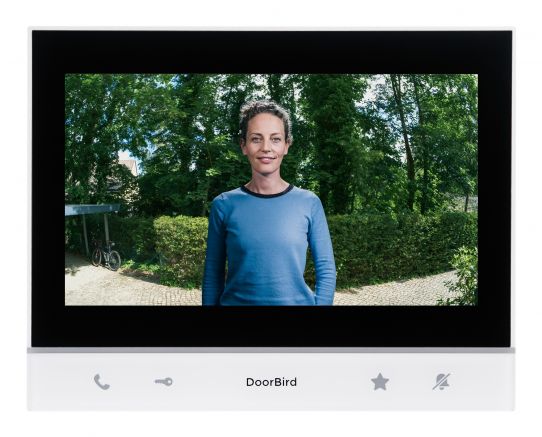

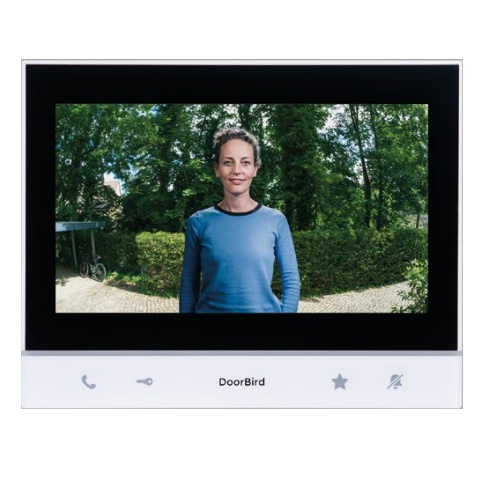

Doorbird, A1103-W IP Video Indoor Station, White

Product Overview

The DoorBird A1103-W IP Video Indoor Station is an ideal addition to any DoorBird system. When paired with our DoorBird IP Video Door Station, the Indoor Station delivers a HD live video stream, crystal clear two-way audio as well as control of doors and gates.

The Indoor Station is compact and designed to complement any environment. The DoorBird Indoor Station has a touch display made of scratch-resistant tempered glass with intuitive user interface and the A1103 features a practical touch-bar with four buttons, suited perfectly also for elderly people.

Standard Features

• WiFi / LAN connection (PoE capable)
• WiFi 802.11b/g/n 2.4GHz, TCP/IP Ethernet Ready
• Dry Contact Relays for Door Release, Remote Chime, Doorbell or Opener
• PoE-A 802.3af Mode-A, 10/100Base-T
• iOS/Android App available on marketplace

Technical Specifications

• 15VDC Plug-In Transformer (connects to 110-240VAC) or PoE 802.3af Mode-A
• Dimensions: 5.75 inches x 7.28 inches x 0.72 inches (H x W x D)
• Operating Temp: 32 ° F to +131 ° F / 0 ° C to +55 ° C
• Humidity 0 to 85% RH (non condensing)
• Indoor use only

Video

• 7 inch True IPS Touch Display with HD video
• 1024 x 600 px Resolution

Finishes

• A1103-W - White

*Video intercom functionality will require pairing unit with a DoorBird Video Intercom station (sold separately).

*Remote door unlock feature will require activation of an electronic lock (sold separately).

Contact us at 1-866-500-5625 for help setting up a complete system quote.

Specifications

• Model: A1103-W
• Manufacturer: DoorBird
• Type: IP video indoor station with touch display and four-button touch bar
• For use with: DoorBird video intercom stations (sold separately)
• Display: 7 inch IPS touch display, 1024 x 600 pixels, scratch-resistant tempered glass
• Network: WiFi 802.11b/g/n 2.4 GHz; Ethernet 10/100Base-T; PoE 802.3af Mode-A
• Power: 15 VDC plug-in transformer (110-240 VAC) or PoE 802.3af Mode-A
• Relays: Dry contact for door release, remote chime, doorbell or opener
• App: iOS and Android
• Dimensions: 5.75 inches H x 7.28 inches W x 0.72 inches D
• Operating temperature: 32°F to 131°F (0°C to 55°C)
• Humidity: 0% to 85% RH (non-condensing)

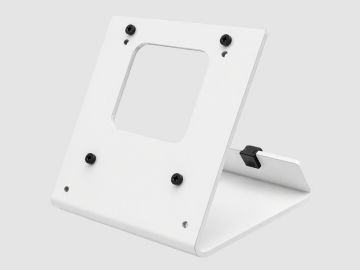

• Mounting: Surface mount with wires in-wall (table stand and wall mounting base sold separately)
• Finish: White
• Usage: Indoor use only
• UPC: 4251489614042
