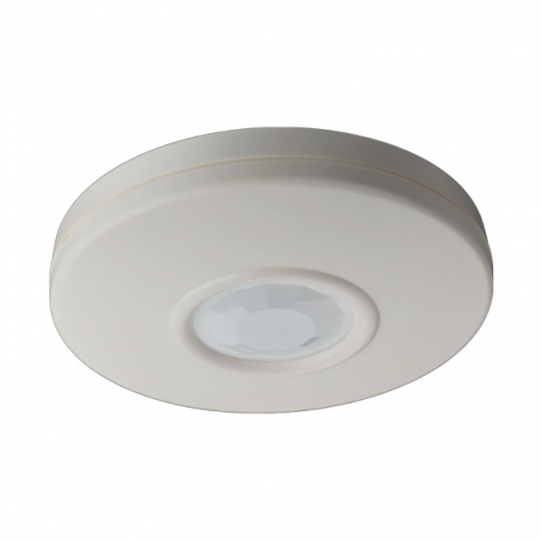

Bosch, DS936 Low Profile Panoramic PIR Detector, White

Product Overview

The ceiling mount, low profile panoramic DS936 PIR Detector uses alternate polarity pulse count. It also uses a Fresnel lens to provide up to 7.5 m (24 feet) of coverage and can be mounted on the surface, or semi-flush directly to a ceiling or a standard octagonal electrical box.

Standard Features

• Enhanced signal processing
• Visible alarm LED that can be enabled or disabled for Testing
• 360 degree x 7.5 m (24 ft) pattern
• Surface/semi-flush mountable

Models

• DS936 - Low Profile Panoramic PIR Detector, White

Certifications

• CE - EMC, LVD, RoHS
• UL 639 Standard for Intrusion Detection Units

Specifications

• Model: DS936 Low Profile Panoramic PIR Detector
• Manufacturer: Bosch
• Coverage Pattern: 360 degrees x 7.5 m (24 ft)
• Alarm Relay Contact: NC
• Current: 15 mA at 12 VDC
• Voltage: 12 VDC
• Mounting Height: 2 m to 3.6 m (7 feet to 12 feet)
• Operating Temperature: -29° C to +49° C (-20° F to +120° F)
• Mount: Surface or semi-flush on ceiling or standard octagonal box
• Finish: White
• Use: Interior use only
• Listing: UL 639; CE (EMC, LVD, RoHS)
