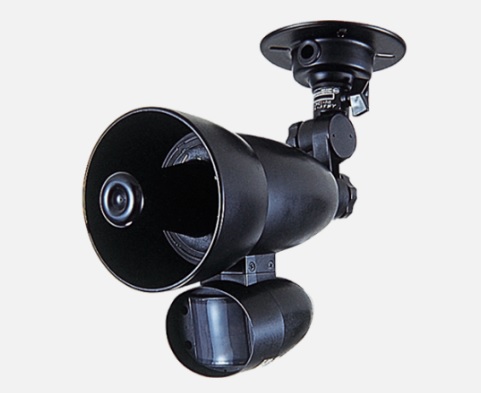

TAKEX, PV-12E Sensor Speaker, Integrated PIR Motion Activation

Product Overview

The PV-12E sensor speaker is designed to play a recorded message when the 12m PIR sensor detects the movement of people or vehicles.

Common applications include welcoming messages at building entrances, or alarm or warning messages at construction sites and other dangerous areas.

Standard Features

• Built-in Microphone to Record Message (12 sec max recording)
• PIR Motion Activated
• Sound Volume Adjustable (100dB max)
• Rainproof

Manufacturer Specifications

• Detection system: Passive infrared
• Supply voltage: 10 to 14VDC (non-polarity)
• Current consumption:
• 20mA or less (stand by)
• 500mA (max)
• Cable length: (20 feet, 0.5m)
• Output Contact: SPDT, Dry Contact 0.5A max

ENVIRONMENTAL SPECIFICATIONS

• Ambient temperature: -20° C to +50° C without condensation and freeze

Finishes

• Black

Please Note: This sensor is designed to detect intrusion to give an audio message; it is not a burglary or crime preventing device. TAKEX is not responsible for damage, injury or losses caused by accident, theft, Acts of God (including inductive surge by lightning), abuse, misuse, abnormal usage, faulty installation or improper maintenance.
