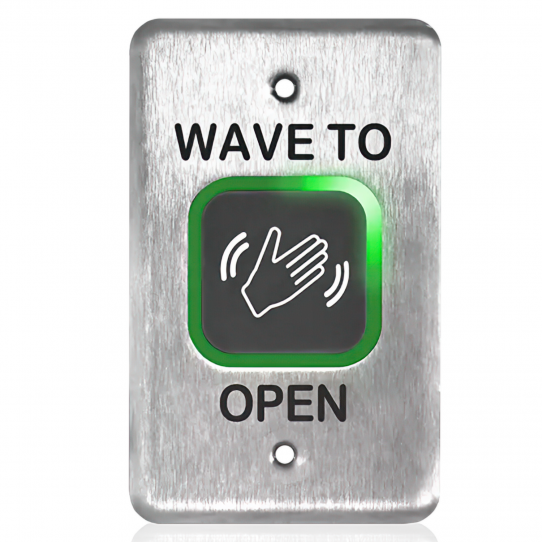

BEA, 10MS41-S Touchless Actuator Switch, Wave To Open, Single Gang, IP55

Description

BEA MAGIC SWITCH® Family provides a highly accessible and germ-free door activation without physical contact. Reduce touchpoints in fast-paced environments that depend on sanitation like healthcare, retail, industrial and commercial settings.

Using microwave technology, BEA MS41 produces a detection field with a reliable and consistent transmission in interior and exterior applications. Capable of detecting a moving hand, cart or wheelchair. Plus, an adjustable hold time offers flexibility to meet ANSI standards.

The MS41 features rounded corners and a customizable illuminated ring with audible signaling. The durable design suits sterile, wash-down applications such as surgical, wash-down, clean room, hospitals and pharmaceutical environments.

Features

• Ideal for harsh environments - IP55 rated enclosure capable of use in industrial and extreme washdown environments
• Adjustable detection zone - Adjustable sensing zone from 4 to 24 inches
• Adjustable hold time - Configurable output hold time of 0.5 to 30 seconds allowing unique, user-defined device placement (timed or toggle)
• Durable faceplate - Stainless steel faceplate increases durability and protection from daily cleaning

Models

• 10MS41-S: Touchless Actuator Switch, Wave To Open, Single Gang, IP55

Specifications

• Model: 10MS41-S Touchless Actuator Switch (Wave To Open, single gang)
• Manufacturer: BEA
• Sensor Technology: Microwave Doppler radar, 24.150 GHz
• Detection Mode: Motion (bidirectional)
• Detection Range: 4 inches to 24 inches (adjustable)
• Voltage: 12 V to 24 V AC/DC
• Relay: SPDT (COM, NO, NC); 30 W (DC) / 60 VA (AC), 1 A (resistive) maximum
• Output Hold Time: 0.5 to 30 seconds, or toggle mode
• Dimensions: 4-1/2 inches L x 2-3/4 inches H x 1-1/8 inches T
• Weight: 0.34 lbs
• Operating Temperature: -4° F to +131° F
• Protection: IP55 (apply silicone to achieve IP65)
• Faceplate: Stainless steel; illuminated ring with audible signaling
• Mount: Single gang
• Transmitter Frequency: 24.150 GHz
• Transmitter power density: < 5 mW/cm
• Dimensions: 4-1/2 inch (L) x 2-3/4 inch (H) x 1-1/8 inch (T) inches
