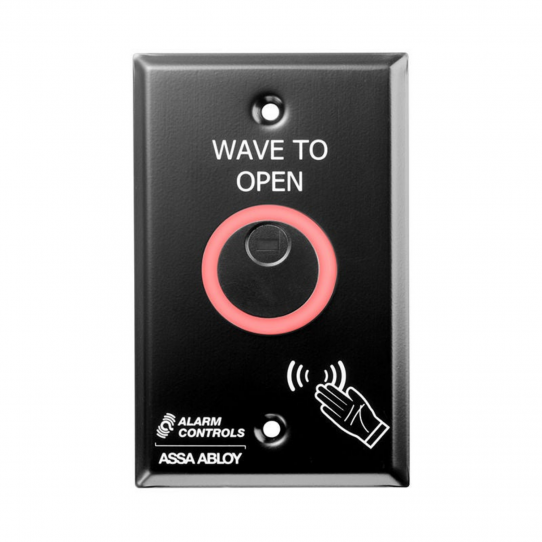

NTB Series Battery Operated No Touch Request to Exit Station, Black
$154.91
$191.84
The battery powered NTB No Touch Request to Exit Station uses infrared sensors to reliably allow safe egress or to activate a device with a simple hand presentation.
These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional request to exit push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring.
- Quickly upgrade existing applications to code compliant touchless using existing wiring
- Designed to work in product configurations with and without auto operator (Can include electric strike, electrified deadlatch, exit devices with latch retraction, magnetic locks. *)
- Direct replacement for traditional request to exit push buttons
* Always confirm compliance with your local building codes.
Specifications
- Sensor detection range: up to 4 in
- Time delay: 1 to 10 seconds, selectable
- Relay: DPDT, 2 A at 30 VDC/VAC
- Power: 2 AA alkaline batteries (included); optional 12 or 24 VDC hard-powered
- Operating temperature: -13°F to 131°F (-25°C to 55°C)
- Certifications: UL 294 Listed, CE, RoHS
- Faceplate: vandal resistant, screened "Wave To Open"
- Finish: black (also available in stainless steel)
Features
- Low battery LED status indicator
- Wired communication
- Built in obstruction detection
- Field-configurable bi-color (red/green) LED status indicators
- Field-configurable on/off audible tones via jumper
- For use with swinging and sliding door applications
Models
- NTB-1-BK with single gang wall plate, Black
- NTB-3-BK with narrow stile wall plate, Black

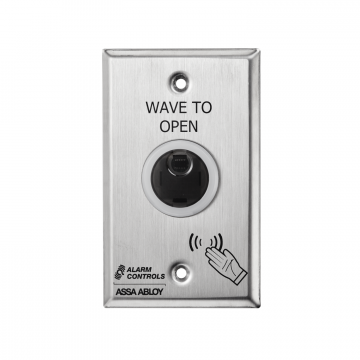

* Also Available in stainless steel finish
